INSPECTION PROCEDURE O-10: The ETACS-ECU does not receive any interior light loaded signal.: Notes

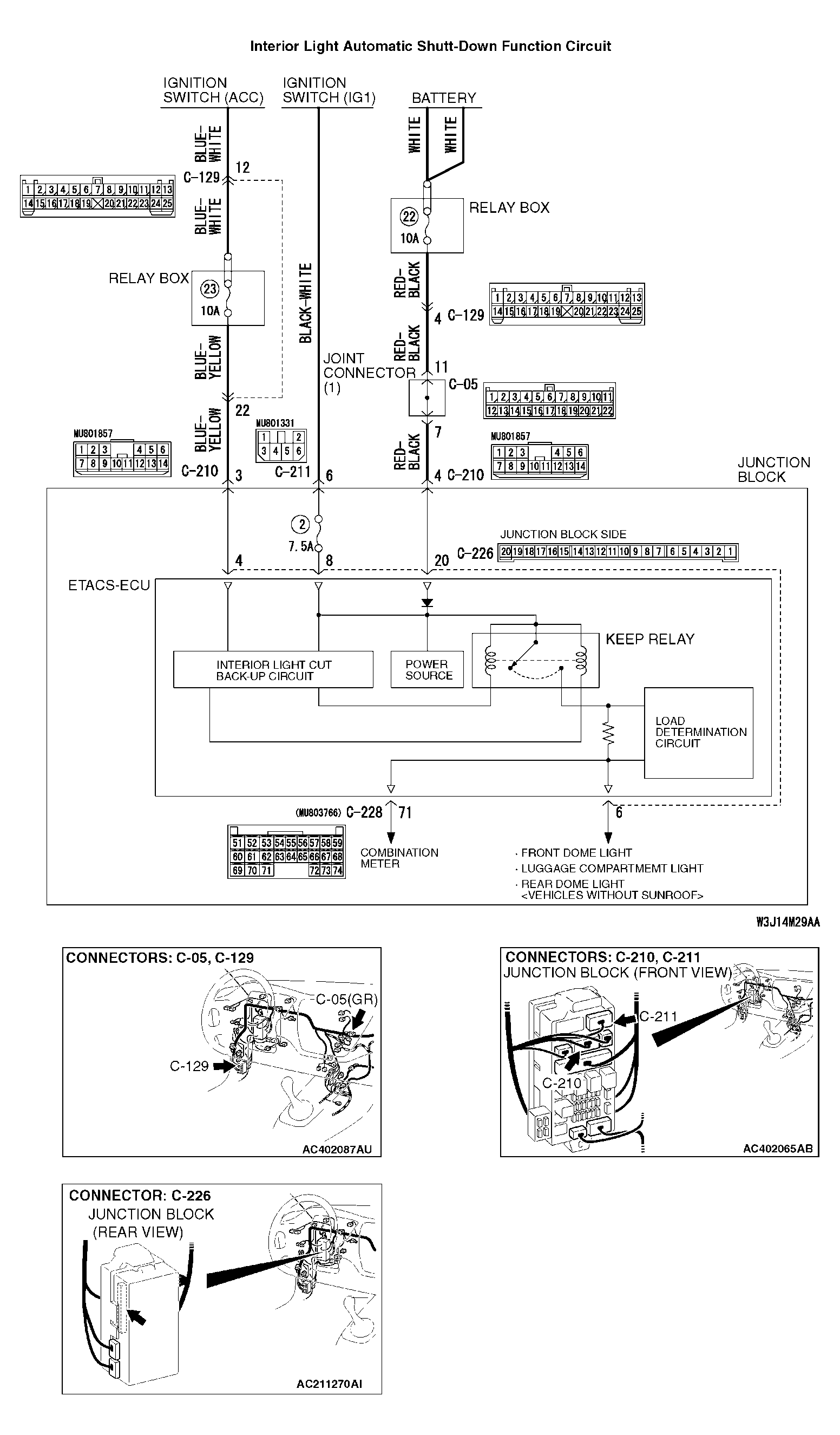

Fig 1: Interior Light Automatic Shut-Down Function Circuit Diagram
G04299508Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
