INSPECTION PROCEDURE K-2: Flasher Timer: Hazard warning lights do not flash when the hazard warning light switch is turned on.: Notes

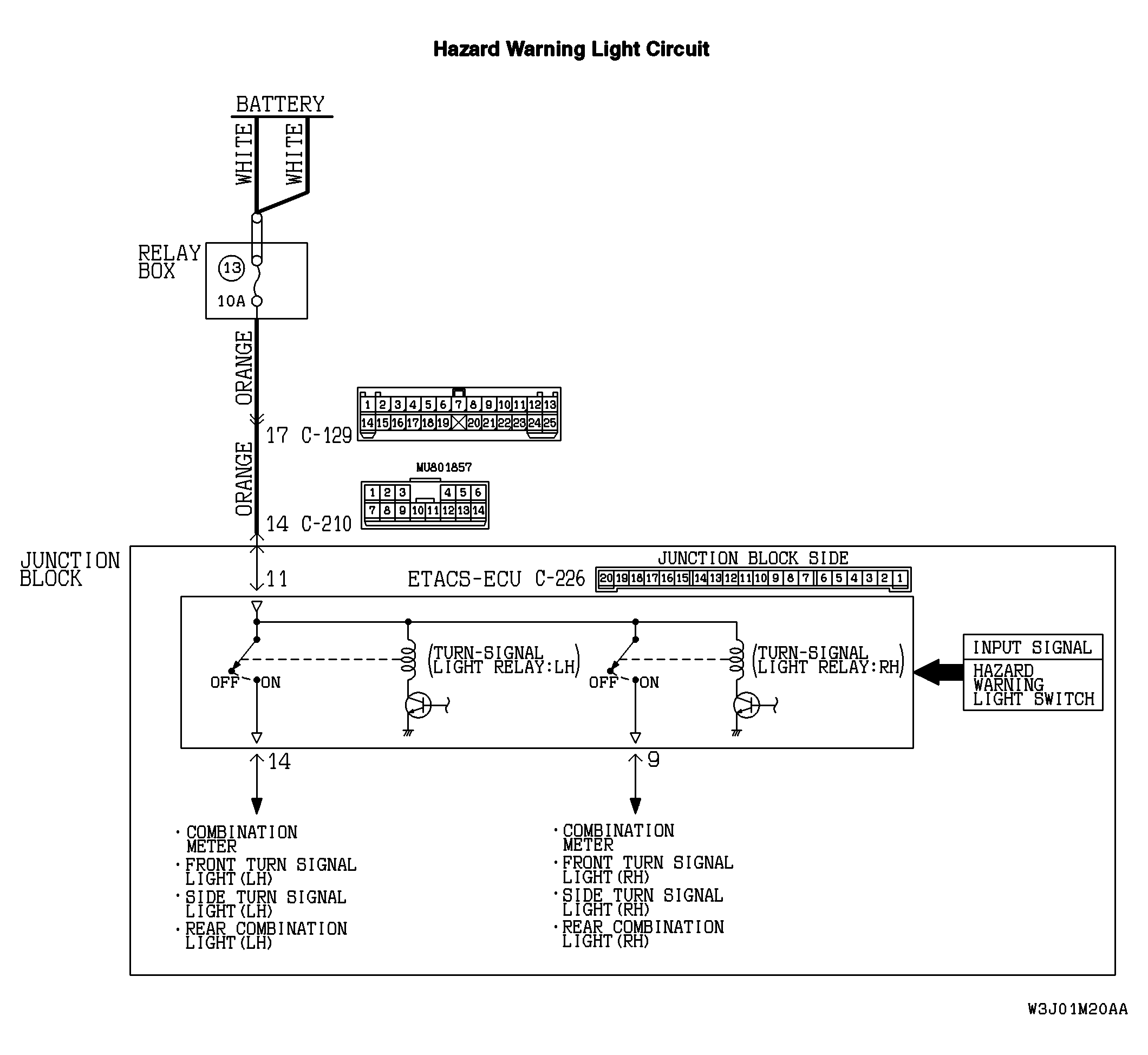

Fig 1: Hazard Warning Light Circuit Diagram
G04299159Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
