INSPECTION PROCEDURE D-5: Power Windows: Front or rear passenger's power windows do not work at all by operating the power window main switch.: Notes

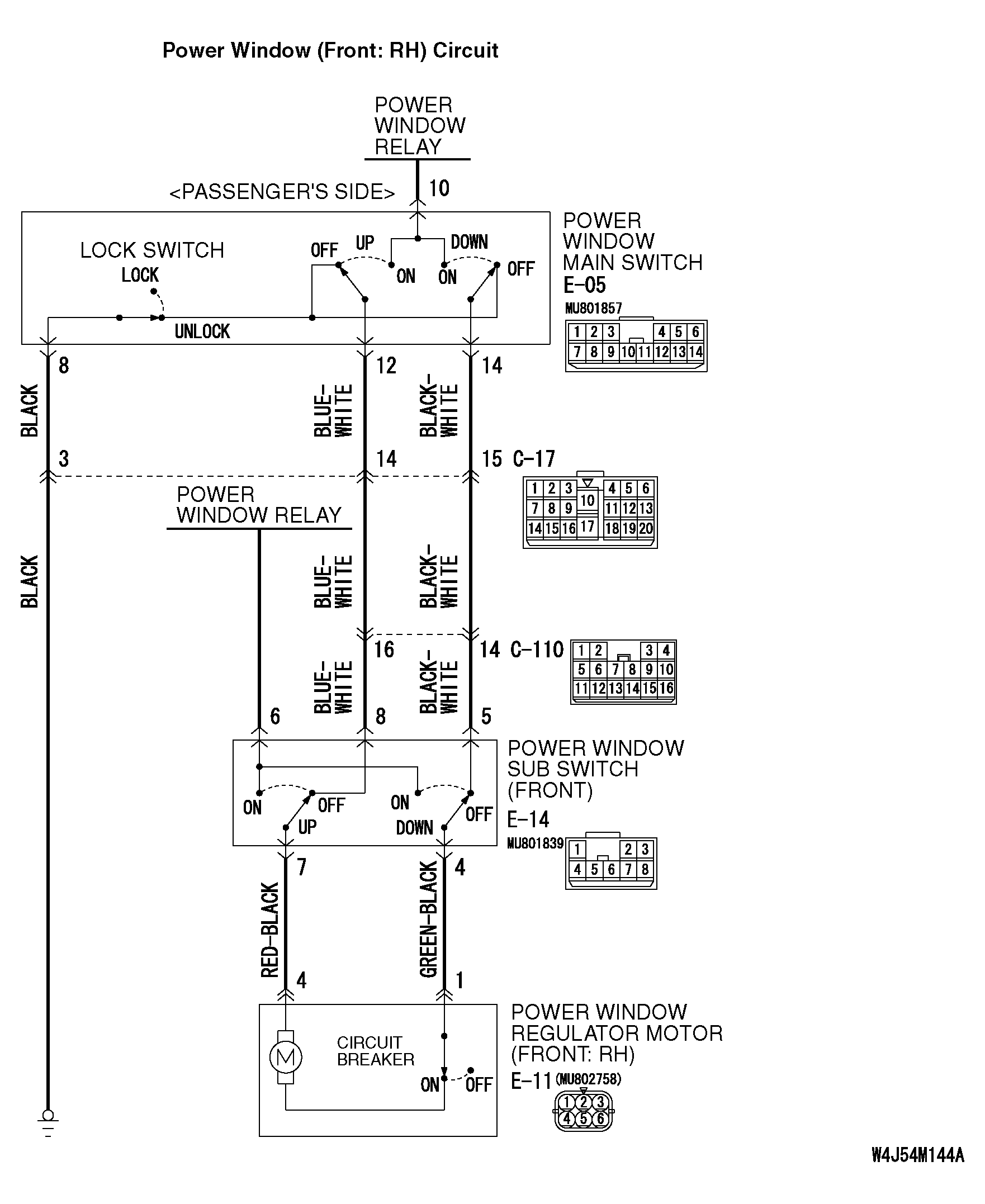

Fig 1: Power Window (Front: RH) Circuit Diagram
G04298824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

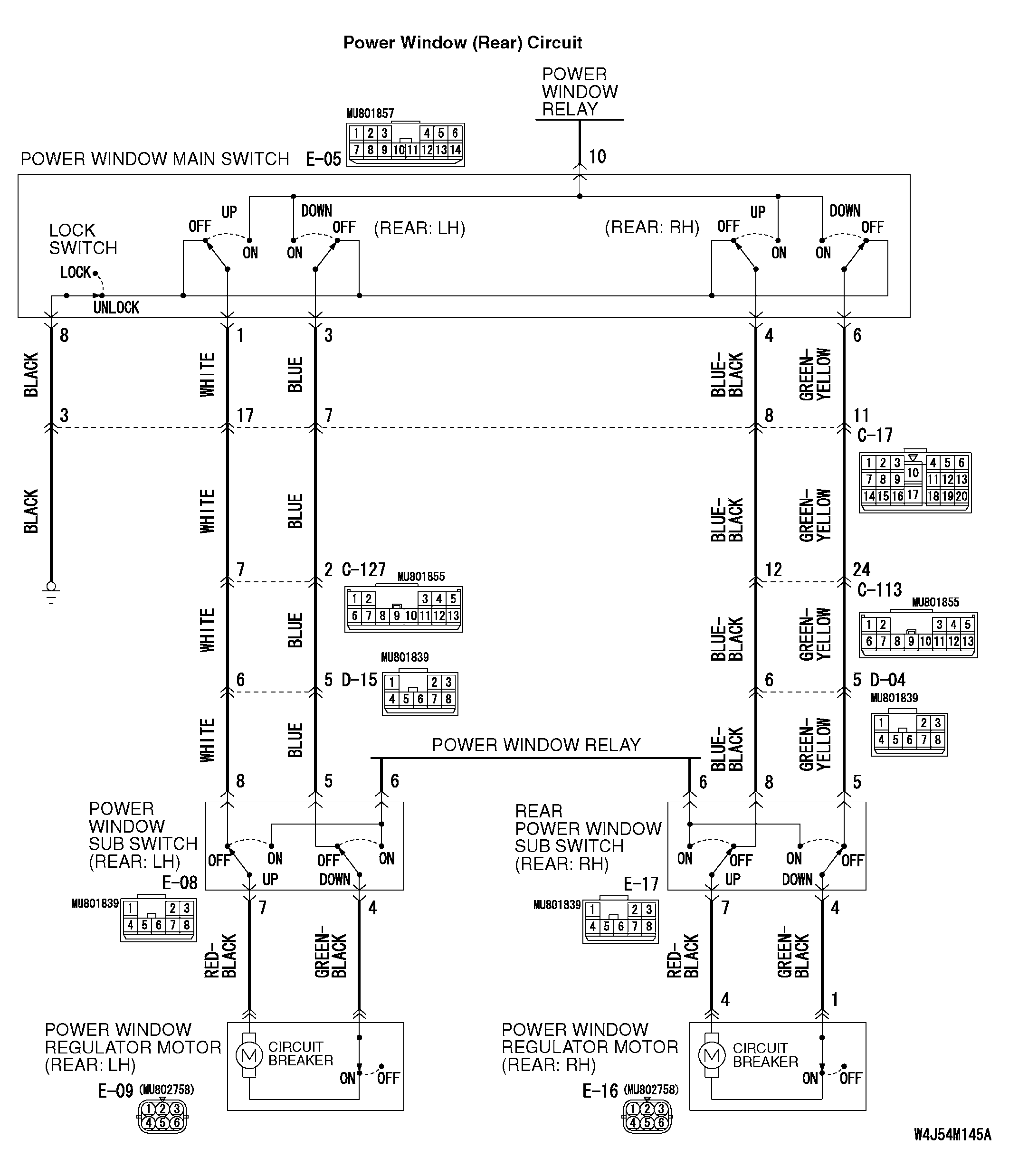

Fig 2: Power Window (Rear) Circuit Diagram
G04298825Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
