INSPECTION PROCEDURE G-1: Windshield Wiper and Washer: The windshield wipers does not work at all.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR  ."

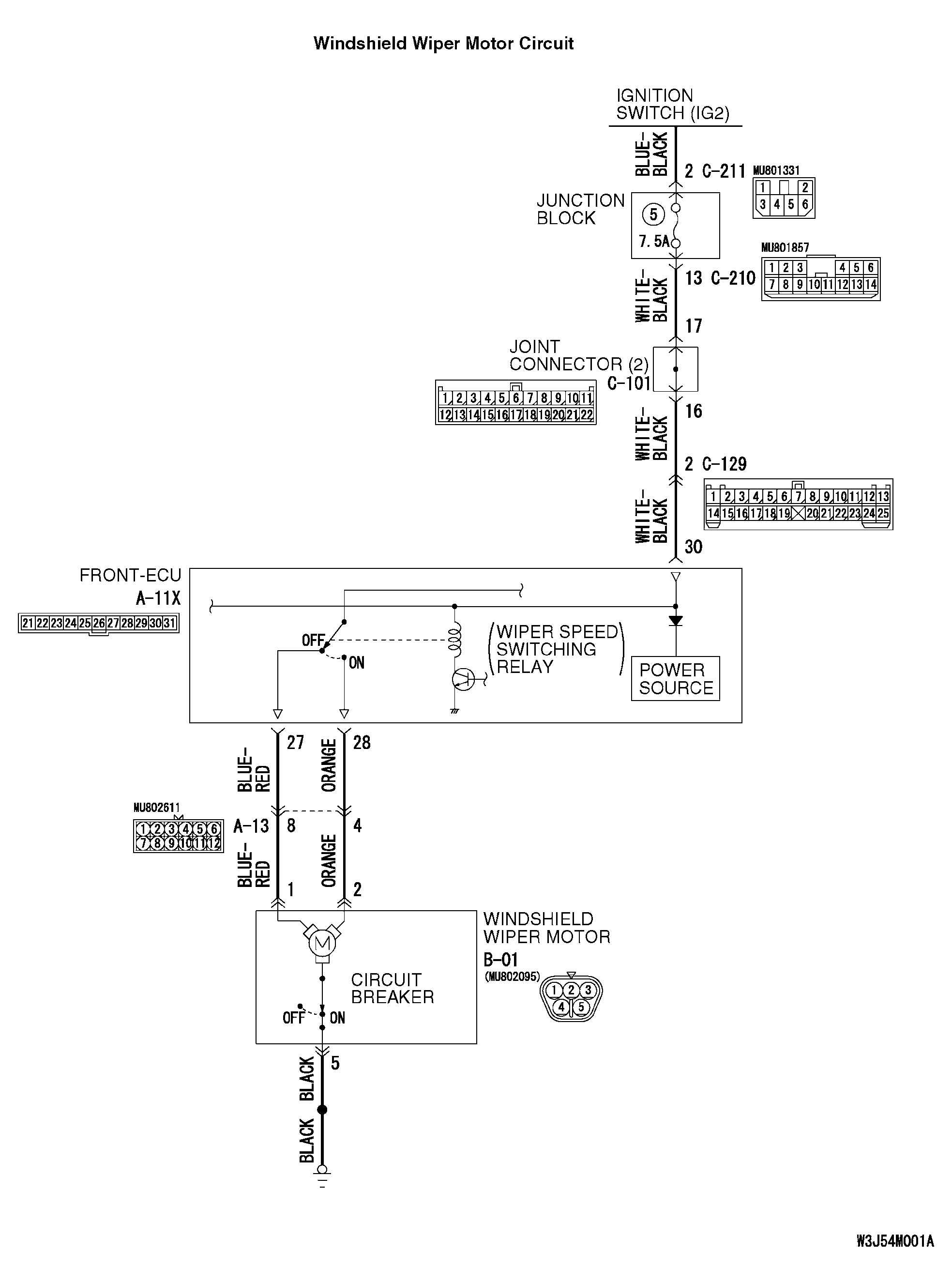

Fig 1: Windshield Wiper Motor Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
