INSPECTION PROCEDURE G-7: The windshield Wiper and Washer: Windshield washer does not work.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR  ."

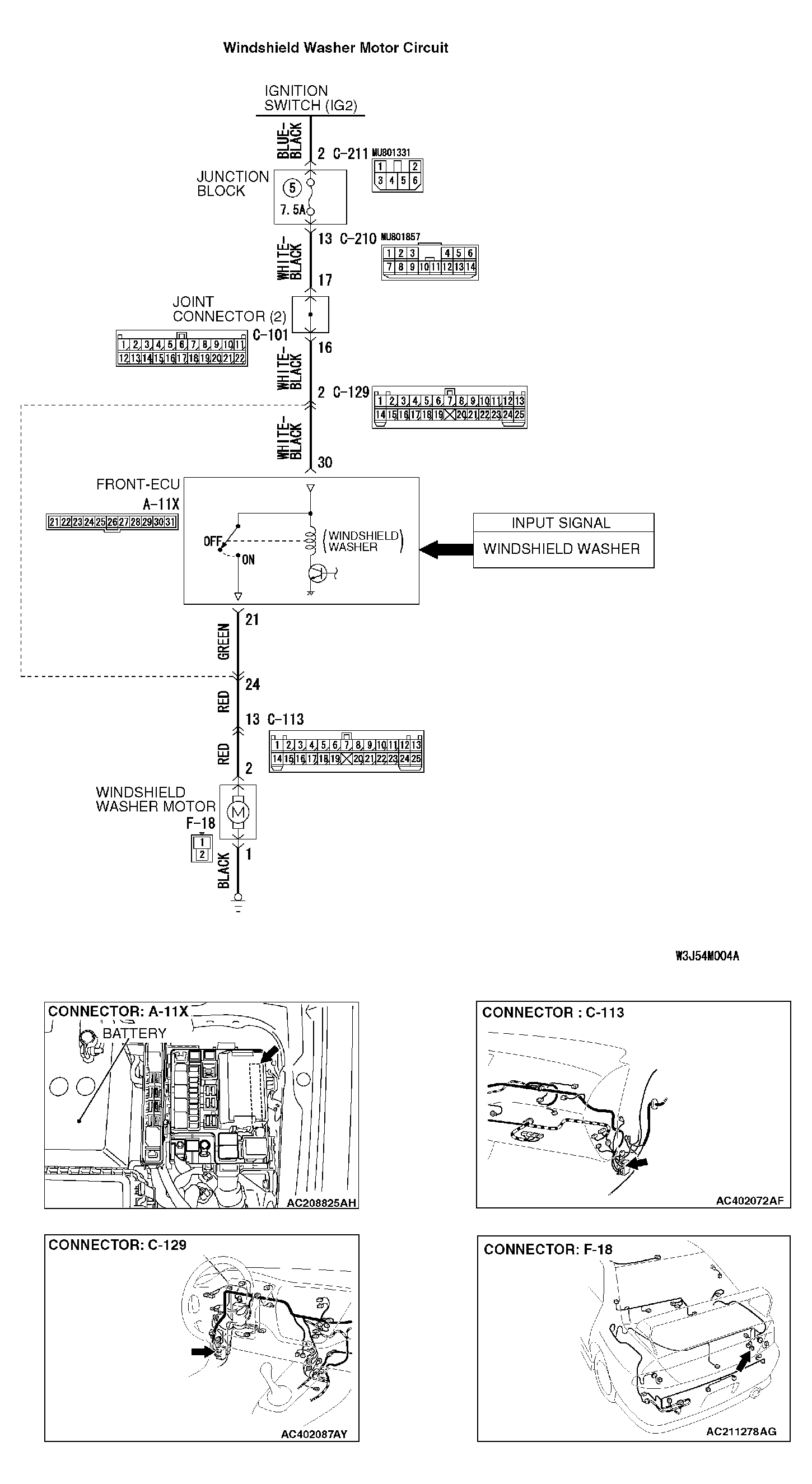

Fig 1: Windshield Washer Wiper Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
