>> A << Rivets Assembly

Use the rivet tool shown in the illustration to attach the rivet by the following procedures.

1. Insert the rivet into the front bumper face and front bumper side plate.
2. Place the rivet tool over portion A of the rivet.
3. While pushing the flange surface of the rivet with the rivet tool, press the handle of the tool.
4. The thin part of portion A is cut out and the rivet is held in position.

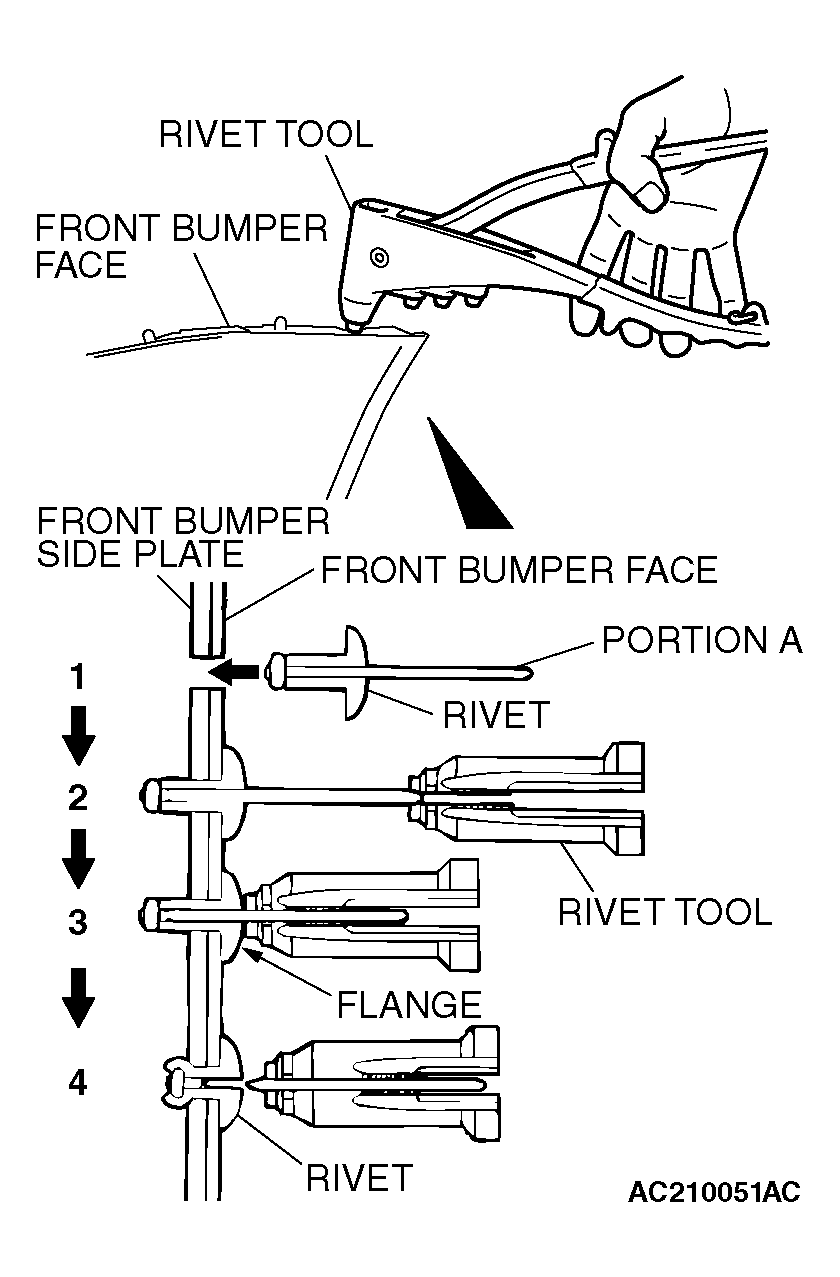

   Fig 1: Installing Rivet

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
