Removal And Installation: Notes

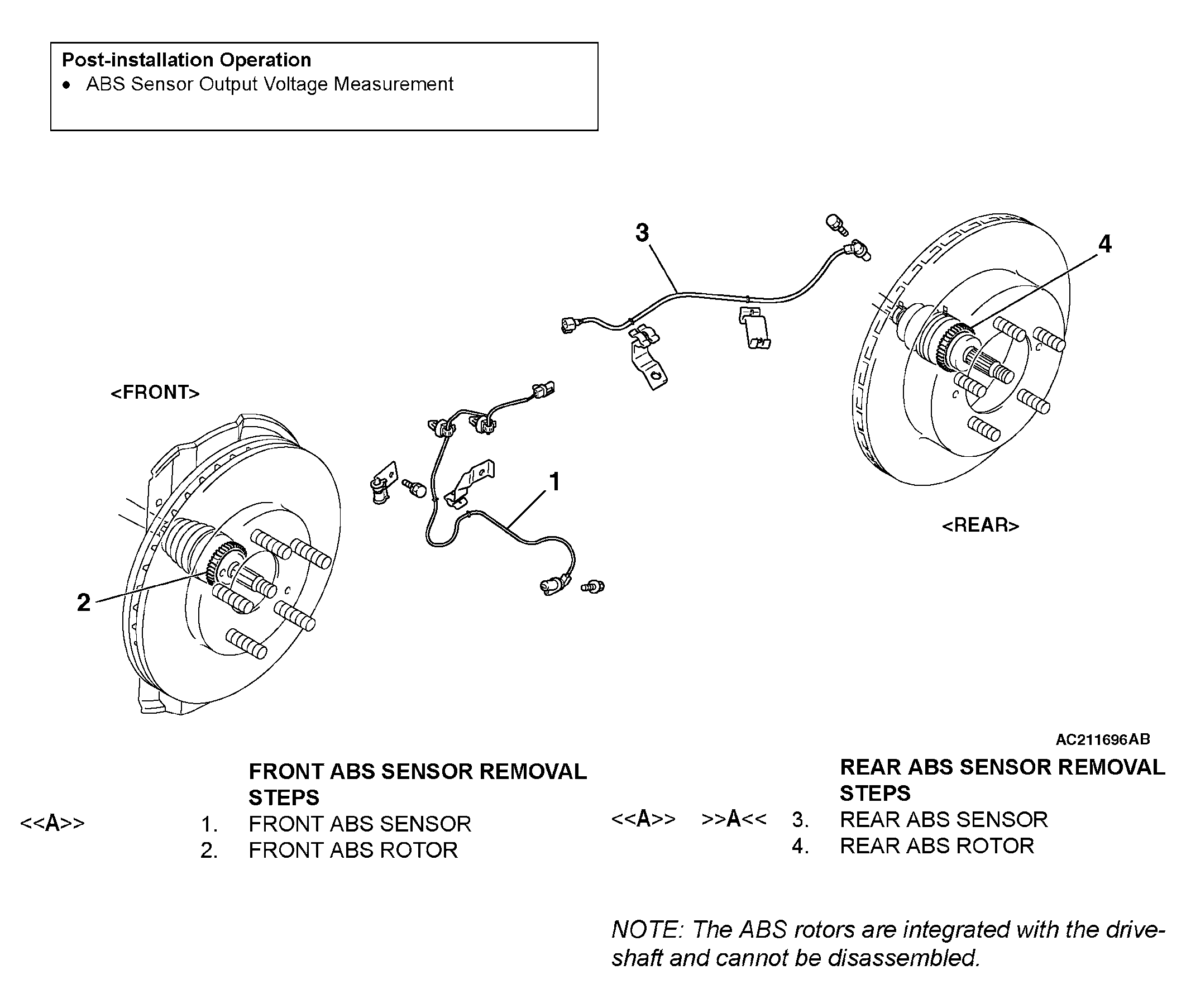

Fig 1: Removing/Installing ABS Sensor

G04297530

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
