>> B << Spider Assembly/TJ Case Installation

CAUTION: Do not mix old and new or different types of grease, as a special grease is used in the joint.

After applying the specified grease to the TJ case, insert the driveshaft and apply grease one more time.

Specified grease: Repair kit grease

Used amount: 135 +/- 10 g (4.8 +/- 0.4 oz)

NOTE: The grease in the repair kit should be divided in half for use, respectively, at the joint and inside the boot.

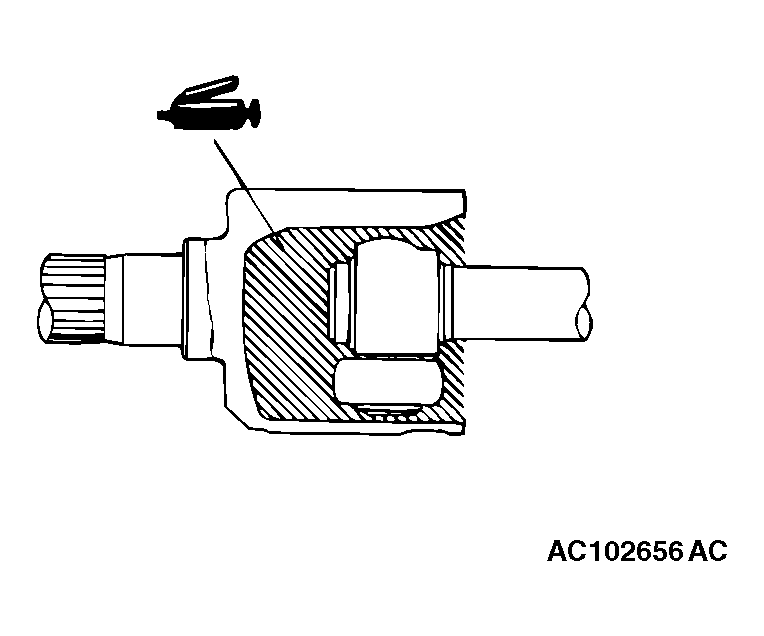

Fig 1: View Of Grease Application Area
G04231727Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
