Removal And Installation: Notes
WARNING:
- Never attempt disassemble or repair the front impact sensor. If faulty, replace it.
- Handle the front impact sensors very carefully, taking care not to drop them or otherwise a new one is required.
- After deployment of an air bag, replace the sensors with new ones.
NOTE:

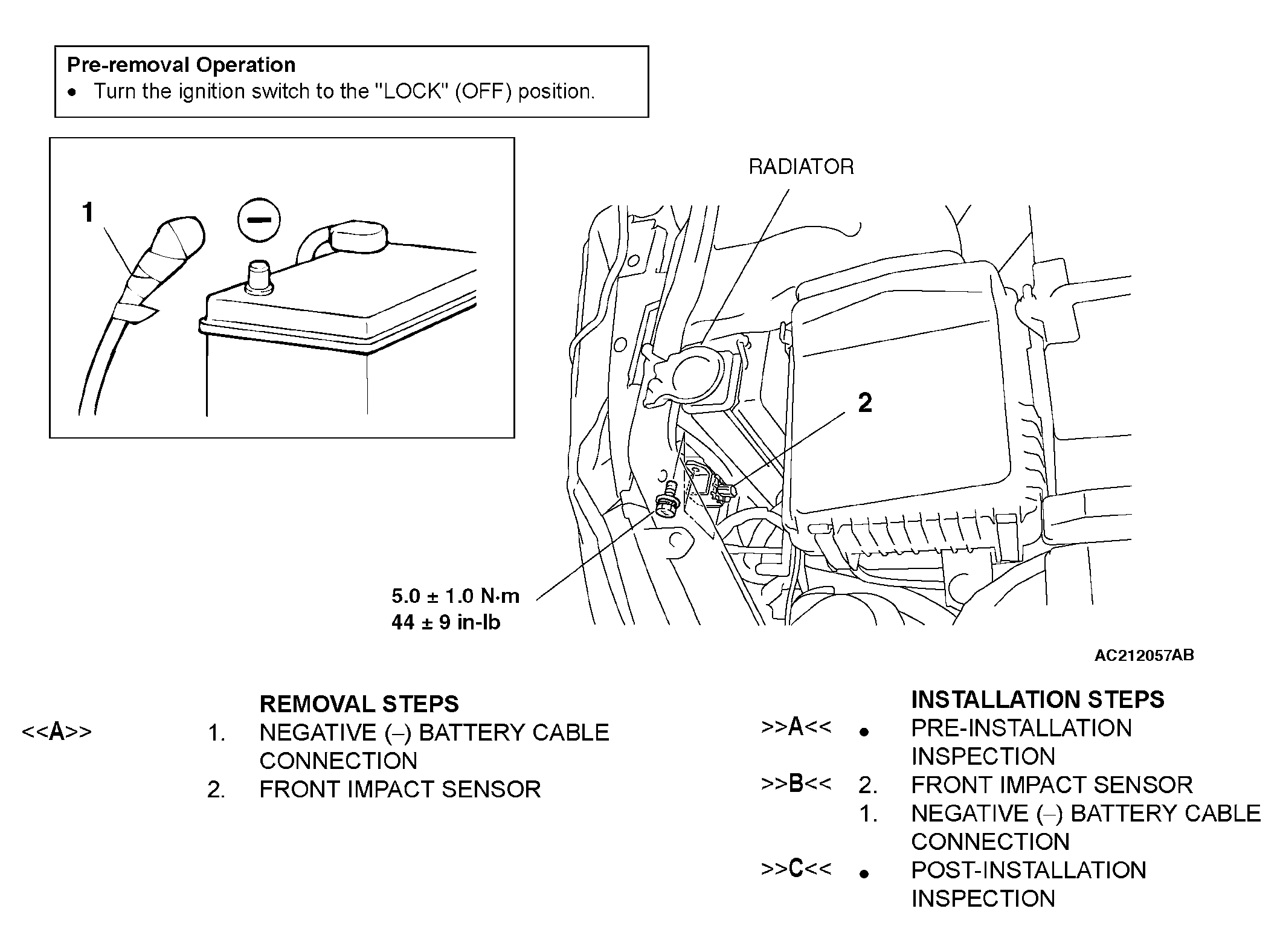

The illustration above shows the front impact sensor (LH). The position of the front impact sensor (RH) is symmetrical to this.
