DTC 61: Stoplight Switch System: Notes

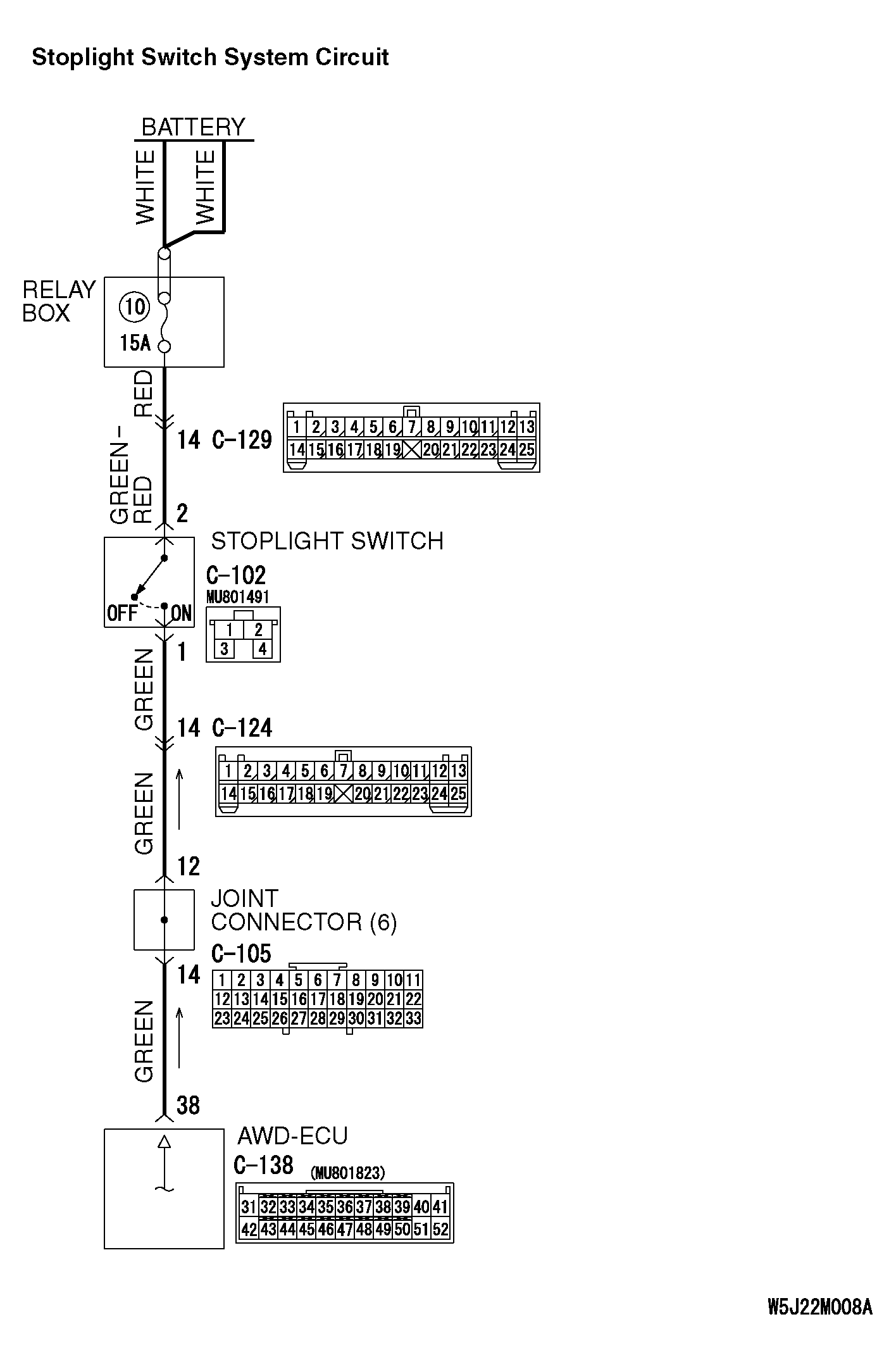

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
G04296439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
