DTC 62: ACD Mode Changeover Switch System: Notes

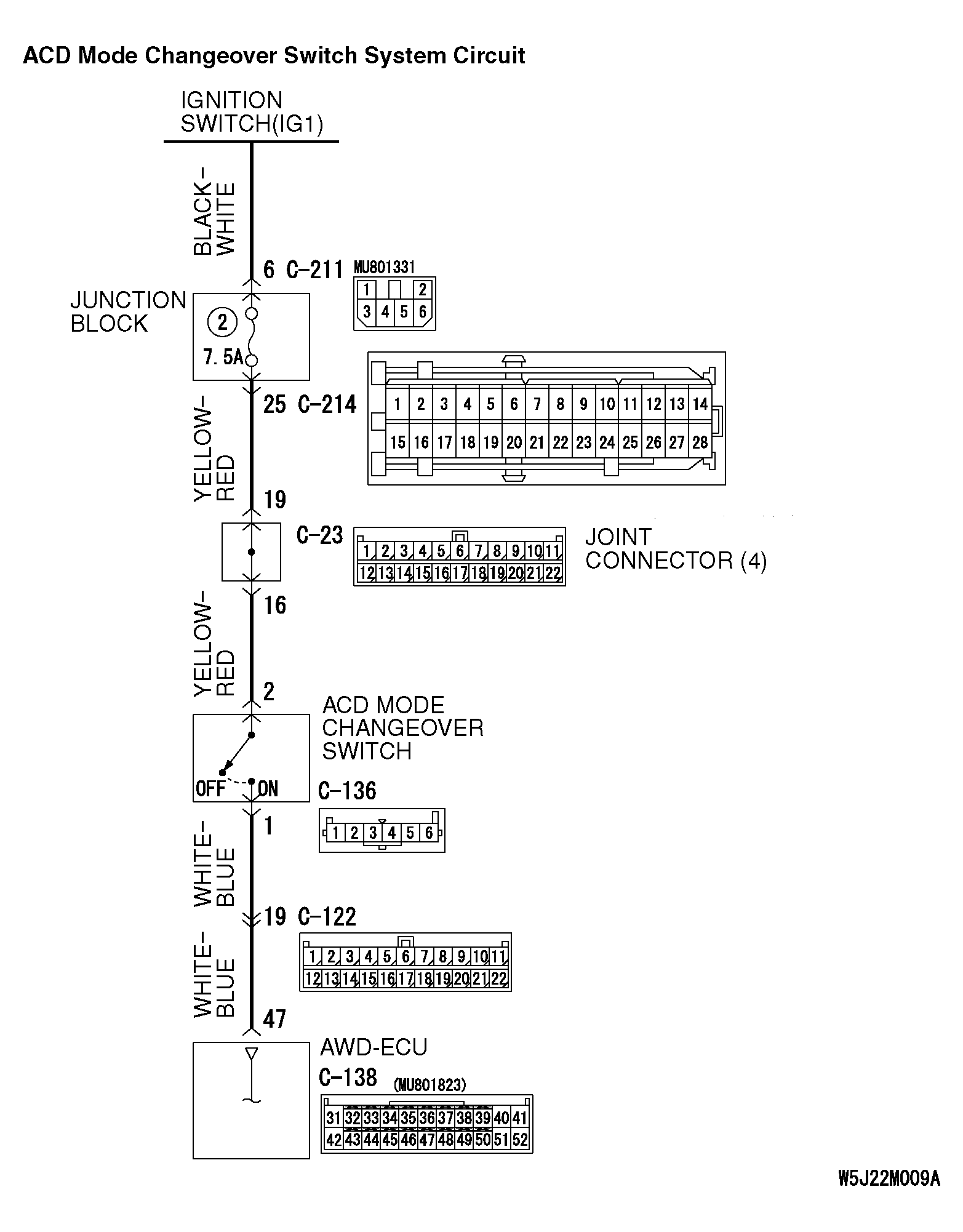

Fig 1: ACD Mode Changeover Switch System Circuit Diagram (1 Of 2)
G04296455Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
