ACD Mode Changeover Switch Continuity Check

CONTINUITY CHECK

ACD MODE CHANGEOVER SWITCH TERMINAL NO. ACD MODE CHANGEOVER SWITCH CONTINUITY
1 - 2 ON Less than 2 ohms
OFF Open circuit
3 - 4 - Less than 2 ohms

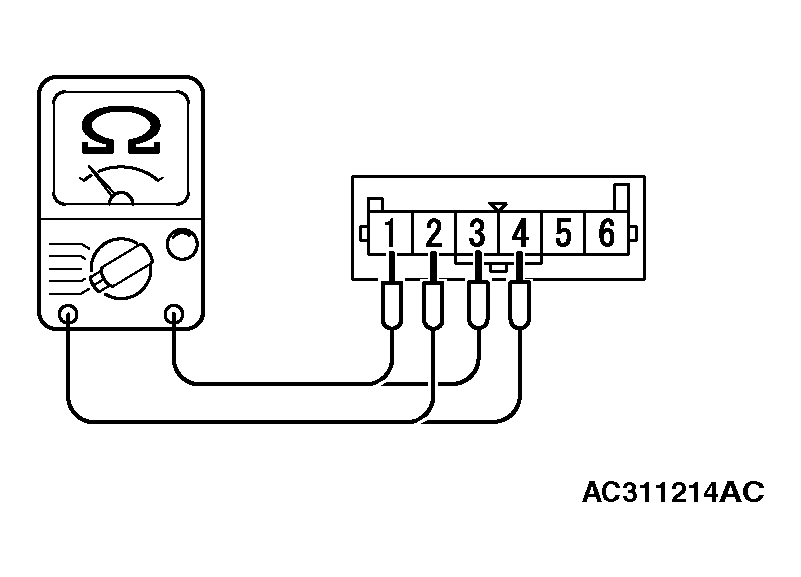

Fig 1: Checking Continuity Between Terminals No.3 And No.4 Of Electric Pump Relay
G04296679Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
