<< B >> Engine Assembly Support

< Engine lifter (special tool MZ203827) is used >
1. Set special tools MB991453 and MZ203827 to the vehicle to support the engine assembly.
2. Set special tool MB991453 to hold the engine/transaxle assembly.

  Fig 1: Supporting Engine Assembly Using Special Tool
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991895) is used >
1. Set special tool MB991895 to the strut mounting nuts and the radiator support upper insulator mounting bolts, which are located in the engine compartment, as shown.
2. Set special tool MB991454 to hold the engine/transaxle assembly.

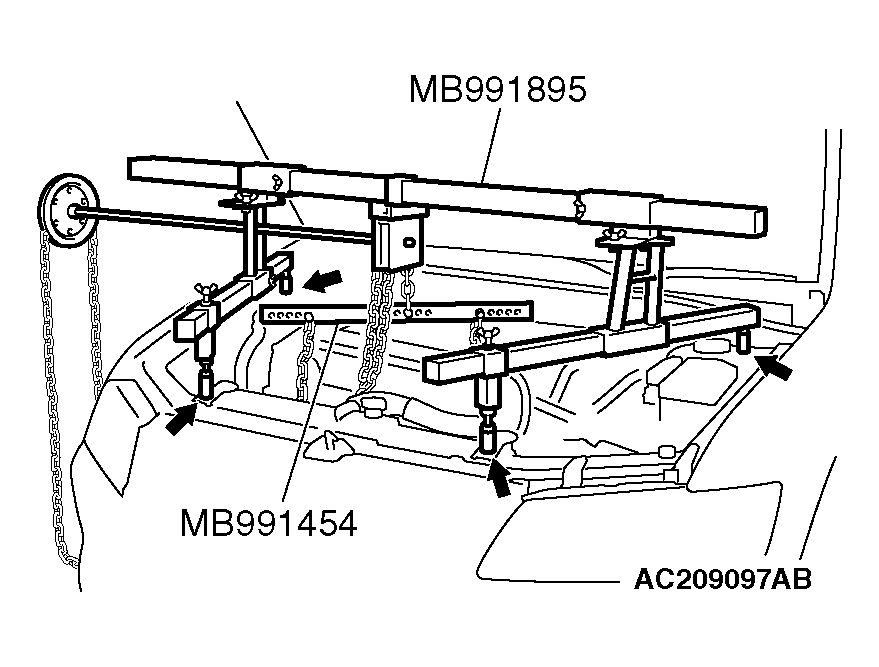

  Fig 2: Setting Special Tool MB991895 To Strut Mounting Nuts And Radiator
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991928) is used >
1. Assemble the engine hanger (special tool MB991928). Set the following parts to the base hanger.
  - Slide bracket (HI)
  - Foot (standard) (MB991932)
  - Joint (90) (MB991930)

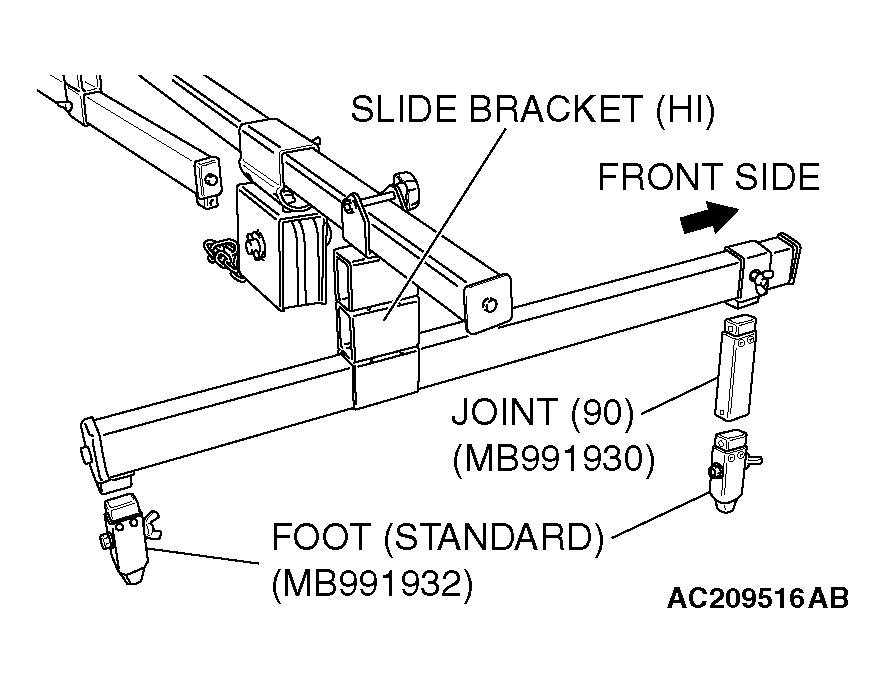

    Fig 3: Assembling Engine Hanger
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set the engine hanger (special tool MB991928) to the strut mounting nuts and the radiator support upper insulator mounting bolts, which are located in the engine compartment, as shown.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
3. Set special tool MB991454 to hold the engine/transaxle assembly.

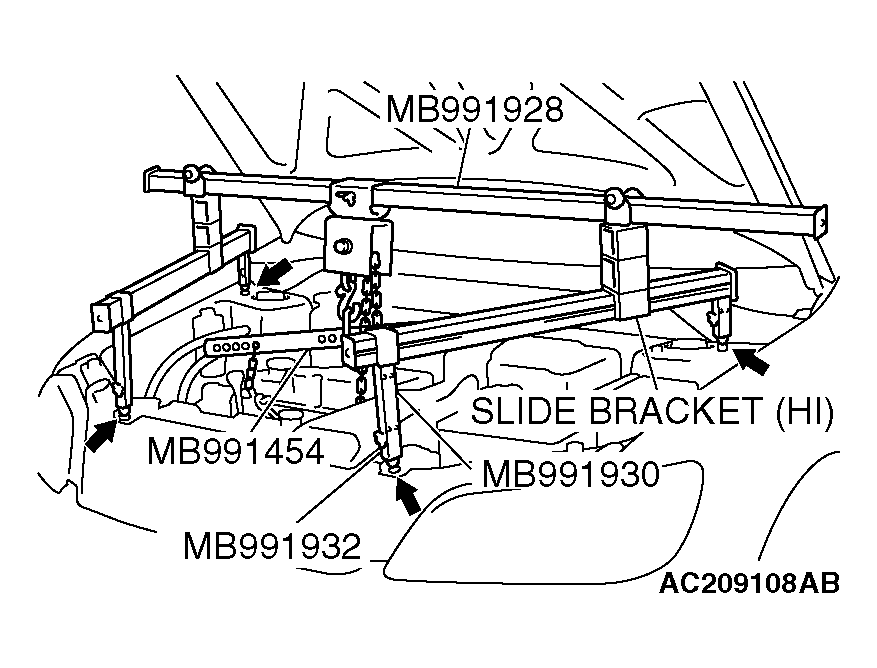

  Fig 4: Setting Special Tool MB991454 To Hold Engine/Transaxle Assembly
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
