>> B << Select Cable Connection (Transaxle Side) Installation

CAUTION: Check that the clip is securely installed.
  1. Install the clip of the select cable as shown in the illustration.
  2. Move the shift lever to all positions and check that the operation is smooth.

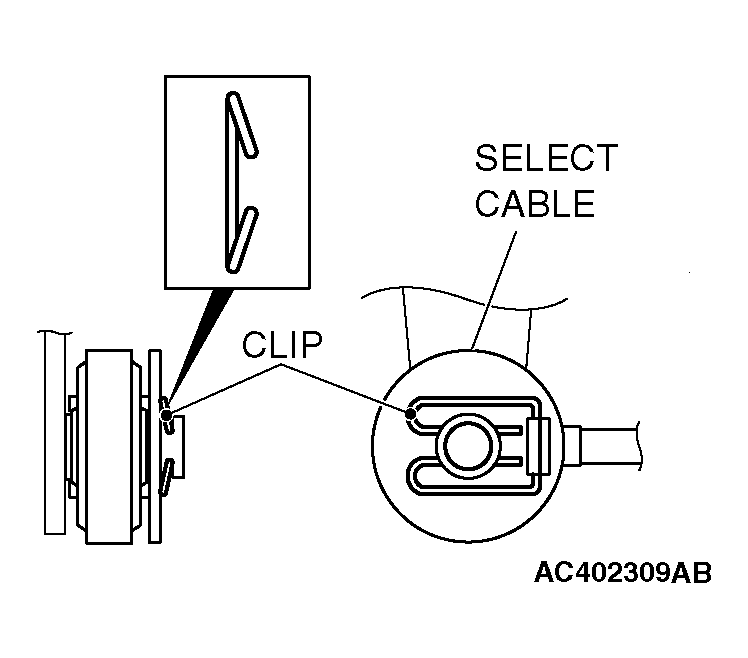

    Fig 1: Installing Clip Of Select Cable
    G04296644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
