<< B >> Transfer Assembly Removal

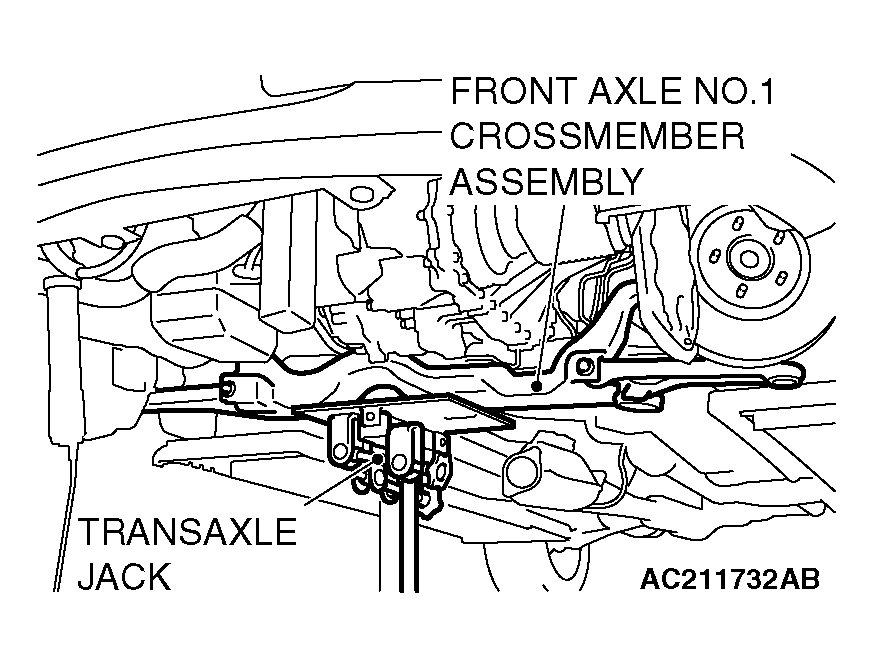

Fig 1: Removing Crossmember Mounting Bolts And Front Axle No.1 Crossmember Assembly
G04296652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Support the transfer assembly with a transaxle jack, and remove the transfer mounting bolts and the transfer assembly.

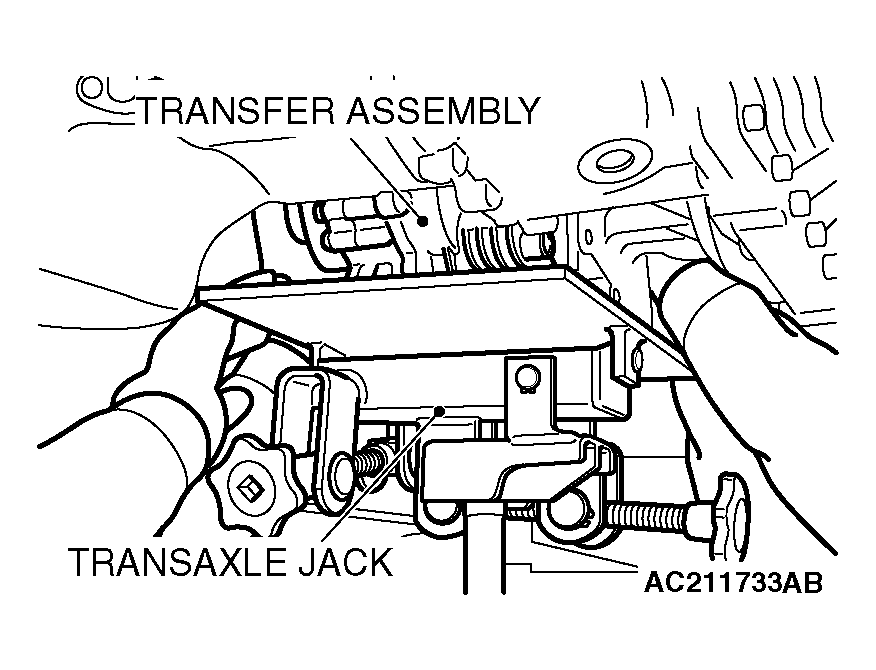

Fig 2: Removing Transfer Mounting Bolts And Transfer Assembly
G04296653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
