>> D << Spring Pin Installation

Drive in the spring pin so that the slit is in the direction shown in the illustration.

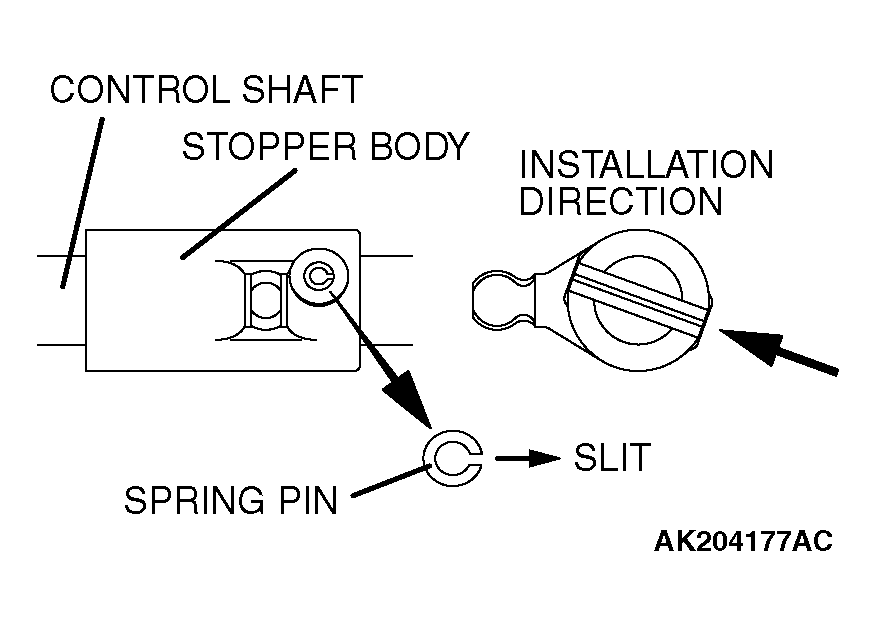

Fig 1: Installing Spring Pin
G04296807Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
