Actuator Test Specifications

ACTUATOR TEST SPECIFICATIONS

NO. ITEM PARTS TO BE ACTIVATED
01 Solenoid valve for front-left wheel Solenoid valves and pump motors in the hydraulic unit (simple inspection mode)
02 Solenoid valve for front-right wheel
03 Solenoid valve for rear-left wheel
04 Solenoid valve for rear-right wheel

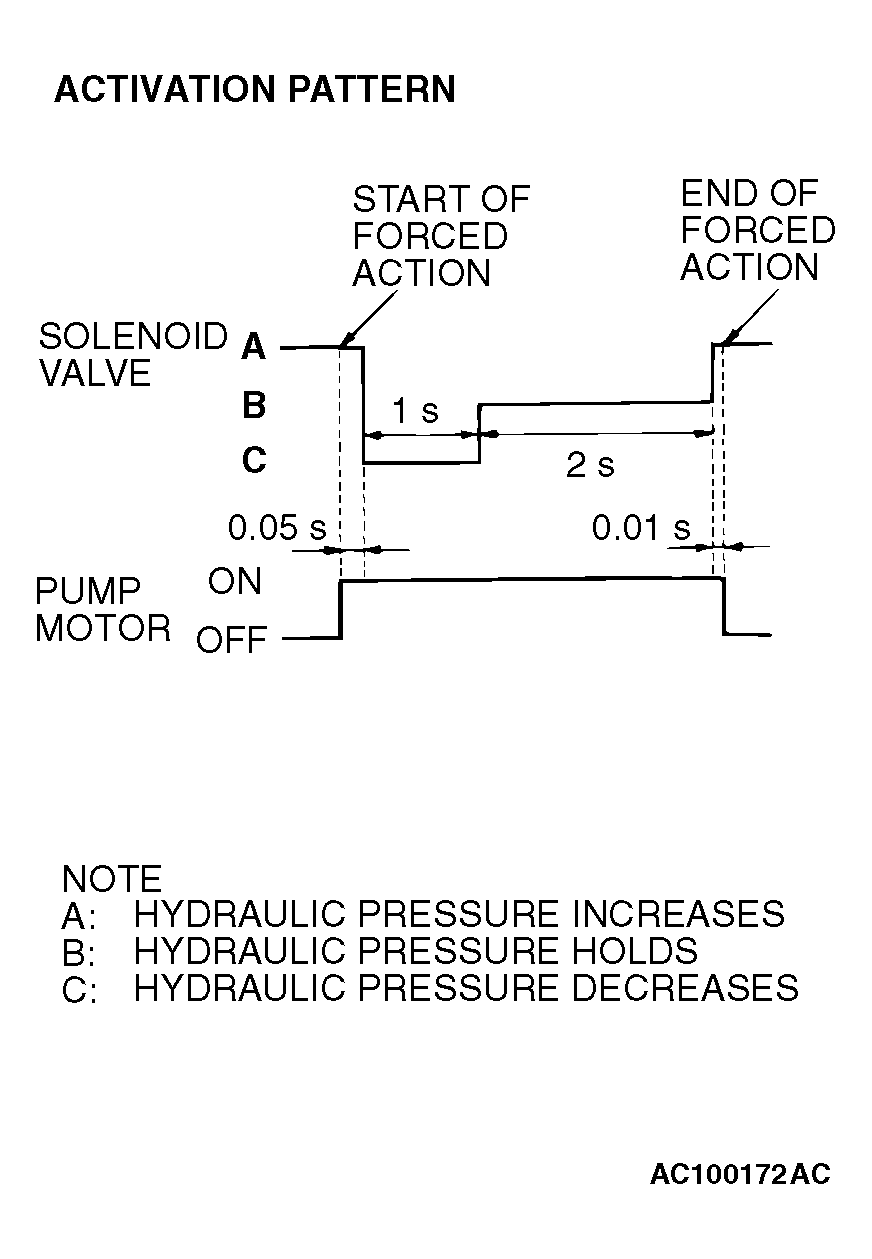

Fig 1: Actuator Activation Pattern
G04297507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
