DTC 71: Lateral G-Sensor System: Notes

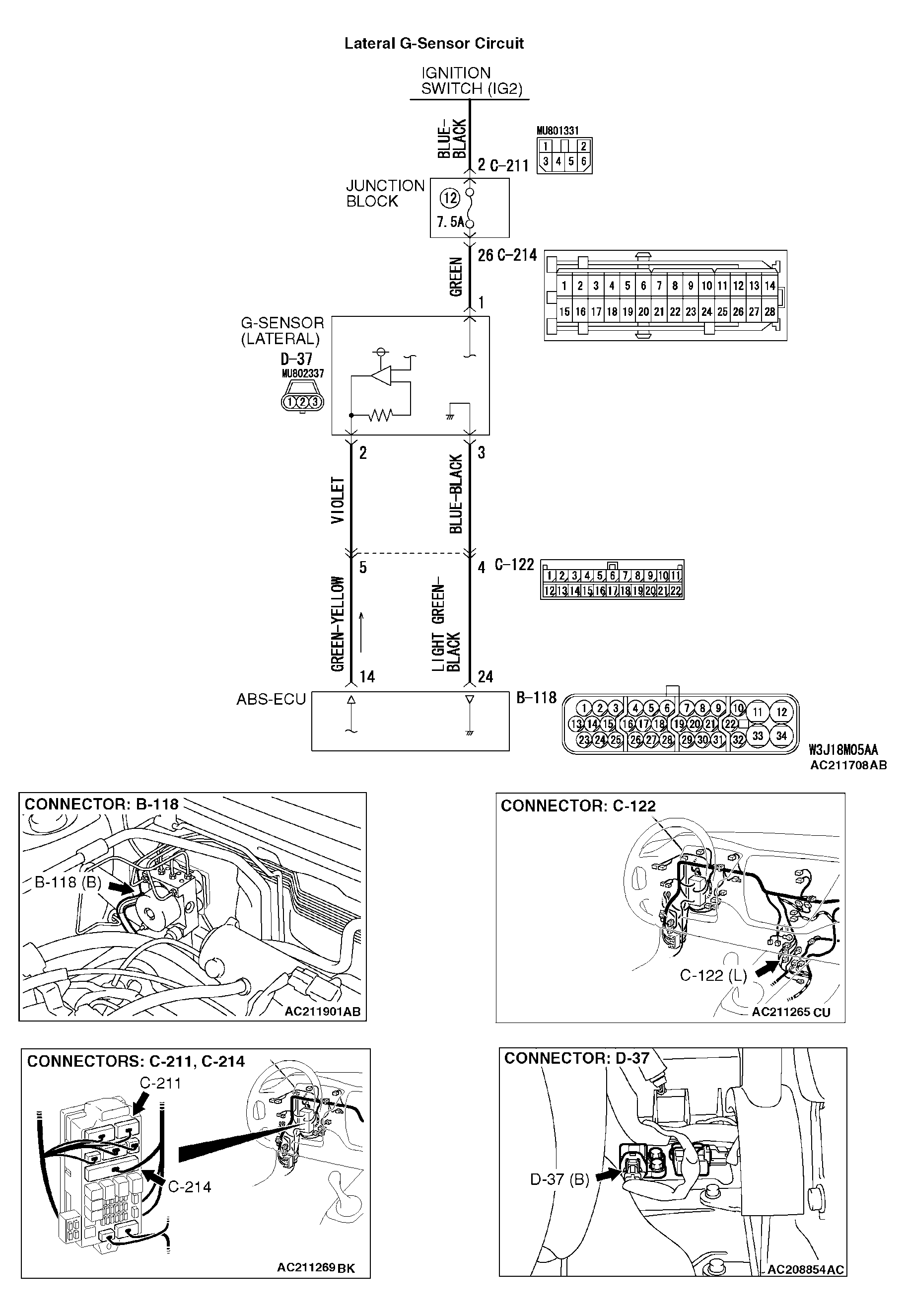

Fig 1: Lateral G-Sensor Circuit Diagram

G04297394

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
