Lubrication Points

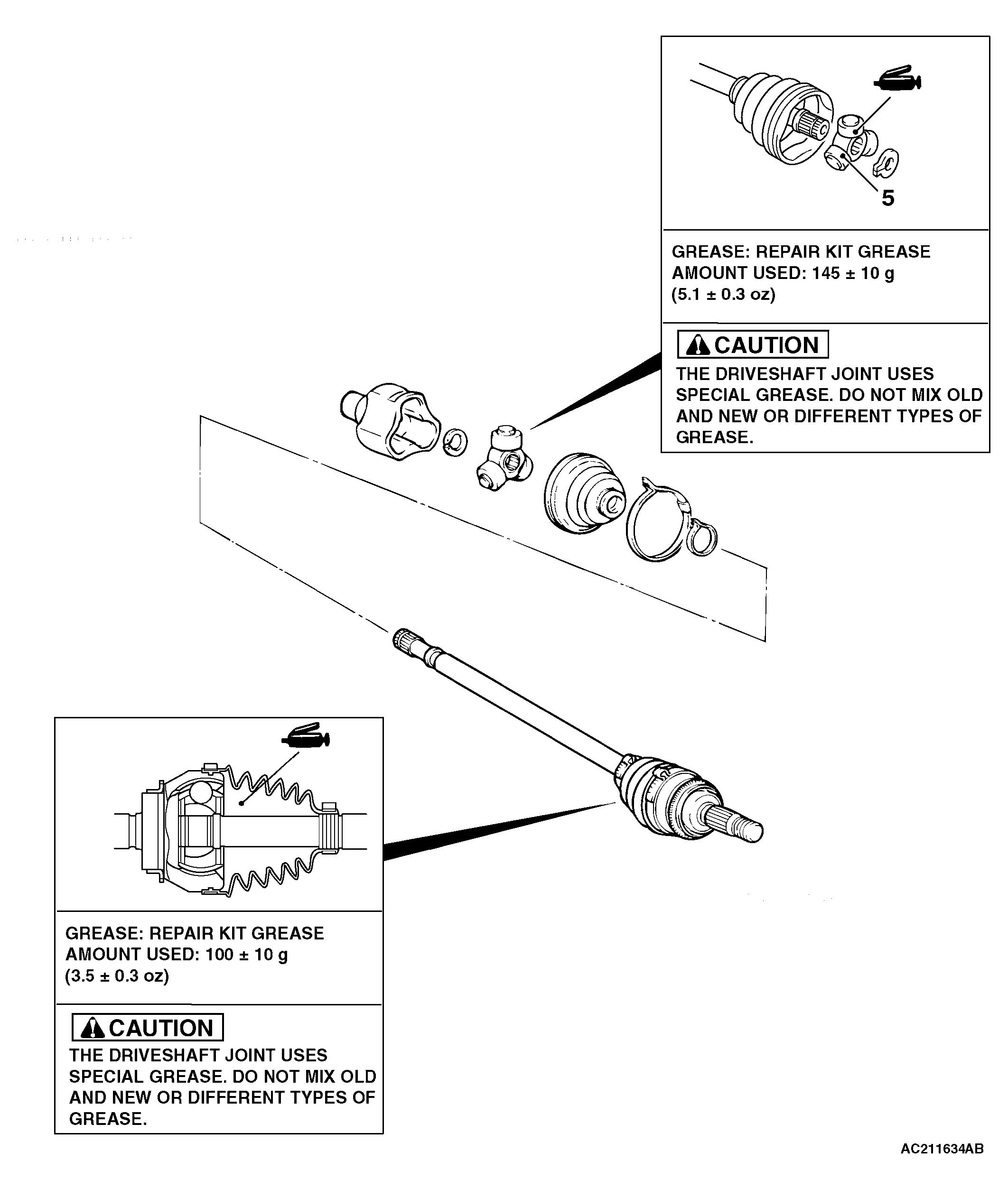

Fig 1: Locating Lubrication Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
