Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION

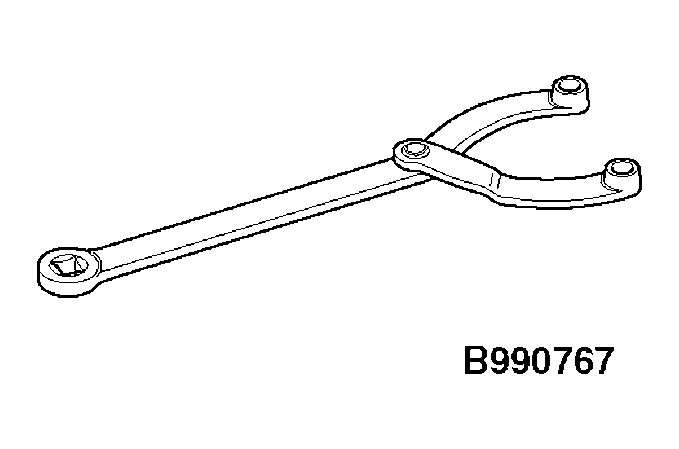

G04296992
 MB990767
Front hub and flange yoke holder		 MB990767-01 Fixing of the hub

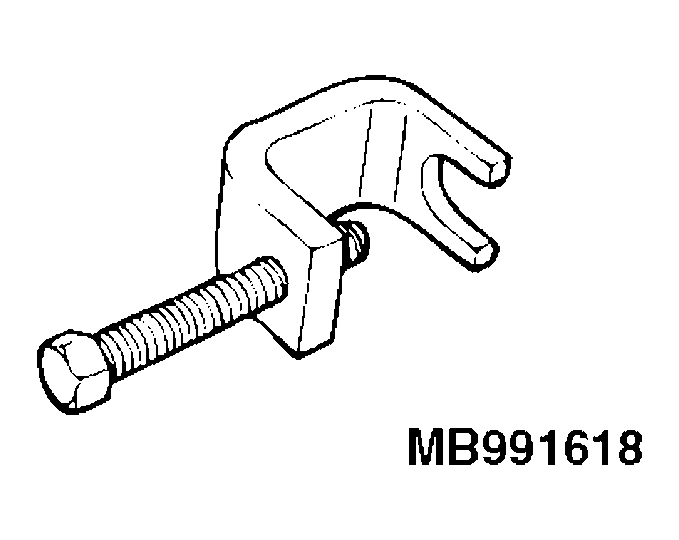

G04296993
 MB991618
Hub bolt remover		 General service tool Removal of the hub bolt

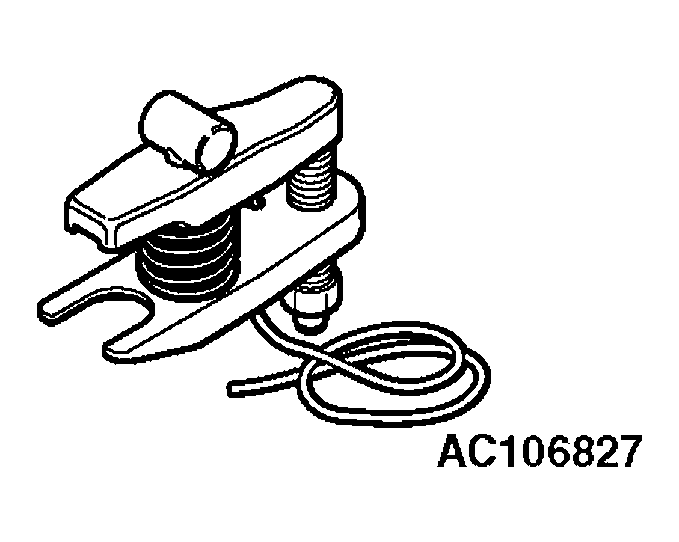

G04296994
 MB991897
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113)is also used to disconnect knuckle and tie rod end ball joint.

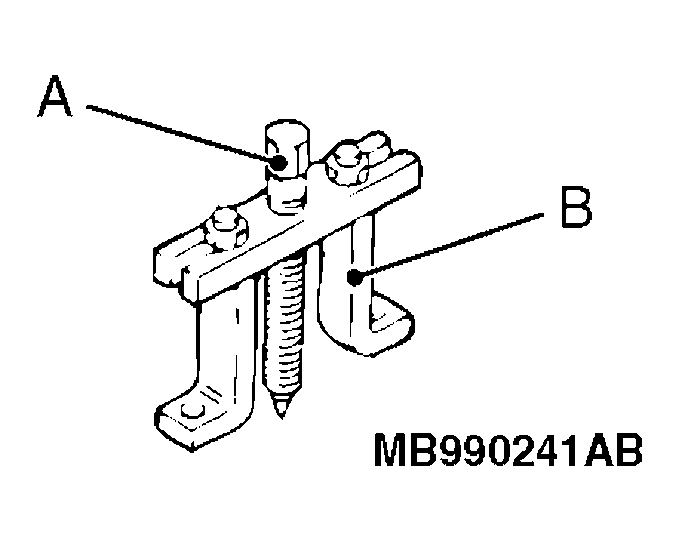

G04296995
 MB990241
Axle shaft puller
  1. MB990242 Puller shaft
  2. MB990244 Puller bar
 MB990241-01 or General service tool Removal of the driveshaft

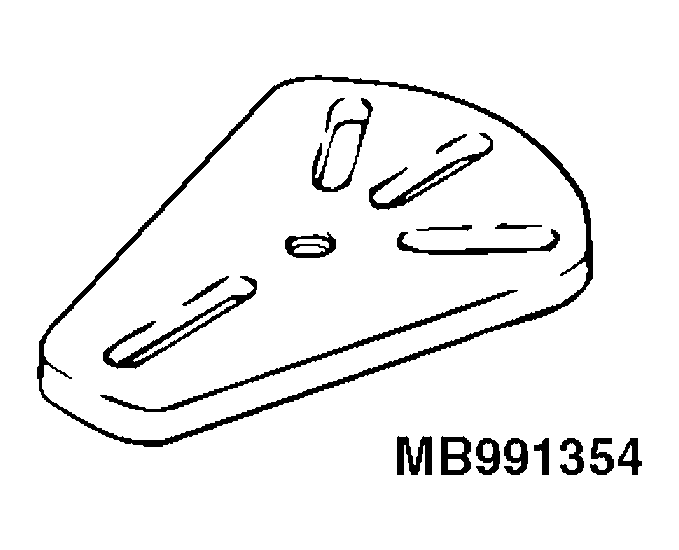

G04296996
 MB991354
Puller body		 General service tool

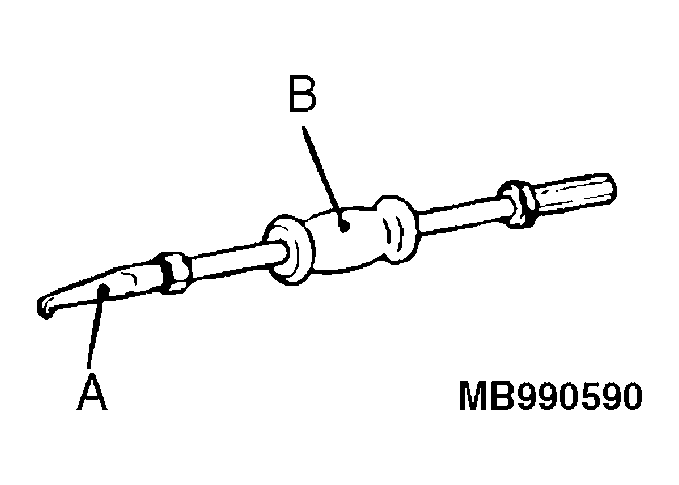

G04296997
 MB990590
Rear axle shaft oil seal remover
  1. MB990212 Adapter
  2. MB990211 Slide hammer
 - Removal of the front wheel hub

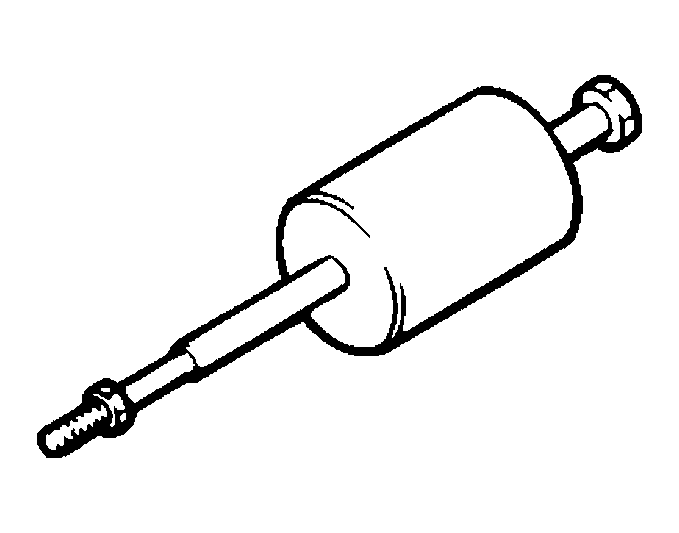

G04296998
 MB991721 Slide hammer - Removal of the output shaft

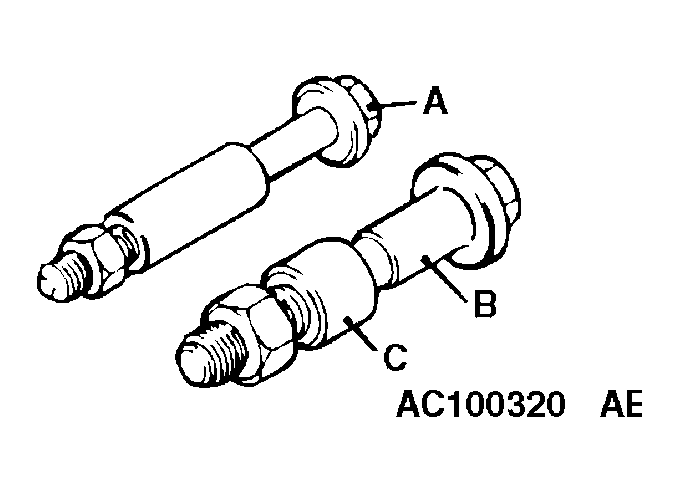

G04296999
  1. MB991017
  2. MB990998
  3. MB991000

A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Removal of the hub
  • Provisional holding of the wheel bearing
  • Measurement of hub breakaway torque
  • Measurement of wheel bearing end play
    NOTE: MB991000, which belongs to MB990998, should be used as a spacer.

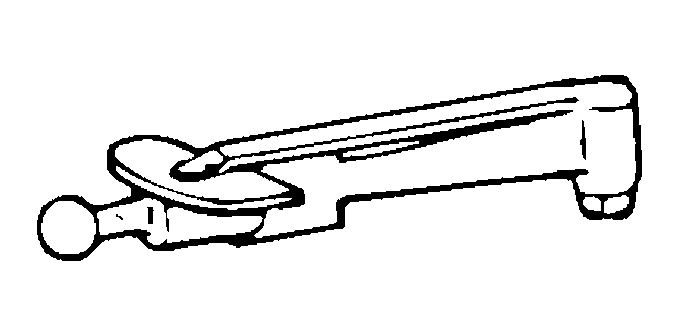

G04297000
 MB990685
Torque wrench		 General service tool Measurement of hub breakaway torque

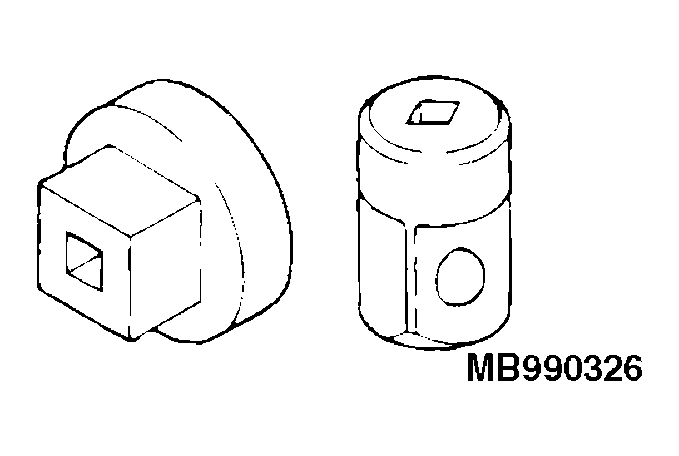

G04297001
 MB990326
Preload socket		 General service tool

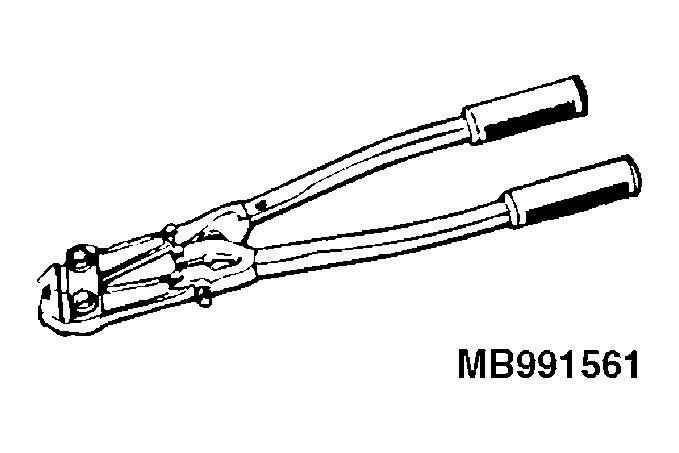

G04297002
 MB991561
Boot band crimping tool		 MB991561 BJ boot (resin boot) band installation
