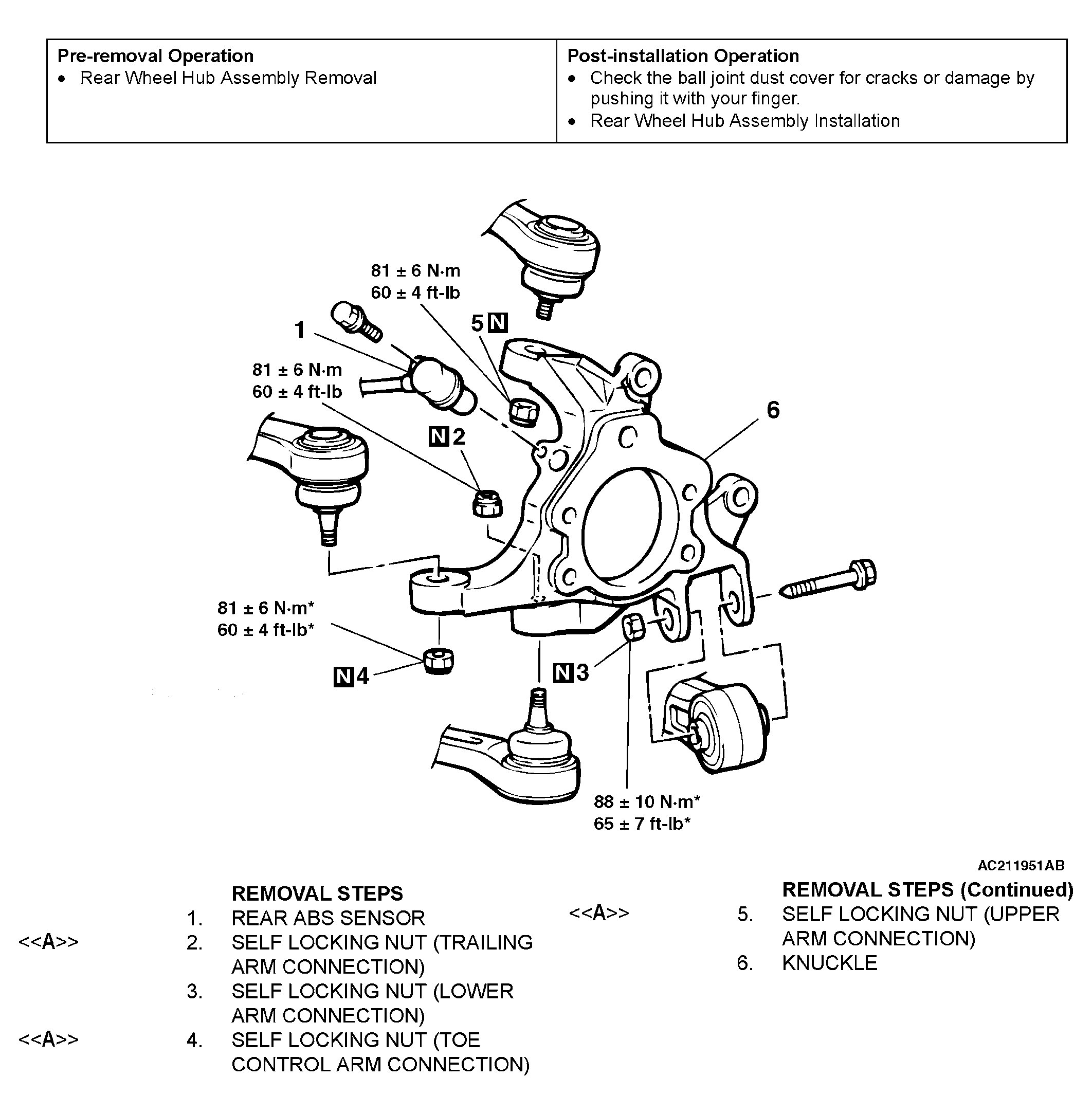

Removal And Installation: Notes
CAUTION:
- Be careful not to strike the pole piece at the tip of the rear ABS sensor with tools during servicing work.
- During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.
- *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
Required Special Tool:
MB991897: Ball Joint Remover
