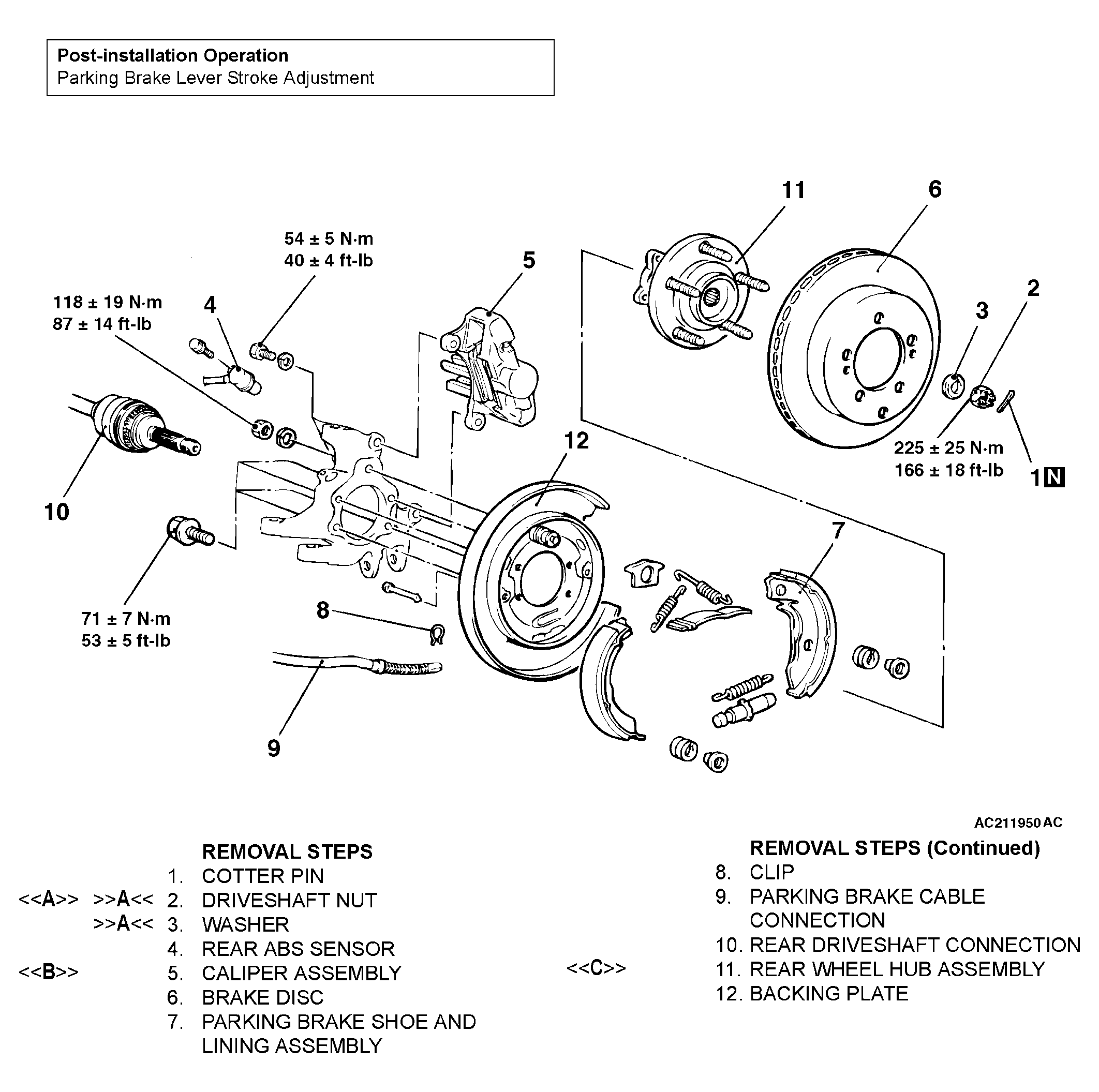

Removal And Installation: Notes
CAUTION:
- Do not strike the ABS rotors installed to the EBJ outer race of driveshaft against other parts when removing or installing the driveshaft. Otherwise the ABS rotors will be damaged.
- Be careful not to strike the pole piece at the tip of the rear ABS sensor with tools during servicing work.
- During maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe out quickly.
Required Special Tool:
MB990767: Front Hub and Flange Yoke Holder
MB990241: Axle Shaft Puller
MB991354: Puller Body
MB990211: Slide Hammer
