<< B >> Drive Belt Removal: Notes
The following operations will be needed due to the serpentine drive system with the drive belt auto-tensioner.
CAUTION:
To reuse the drive belt, draw an arrow indicating the rotating direction (to the right) on the back of the belt using chalk, etc.
- Securely insert the spindle handle or ratchet handle with a 12.7 mm (1/2-inch) insertion angle into the jig hole of the auto-tensioner, and turn the auto-tensioner counterclockwise until it hits the stopper.
The following operations will be needed due to the serpentine drive system with the drive belt auto-tensioner.

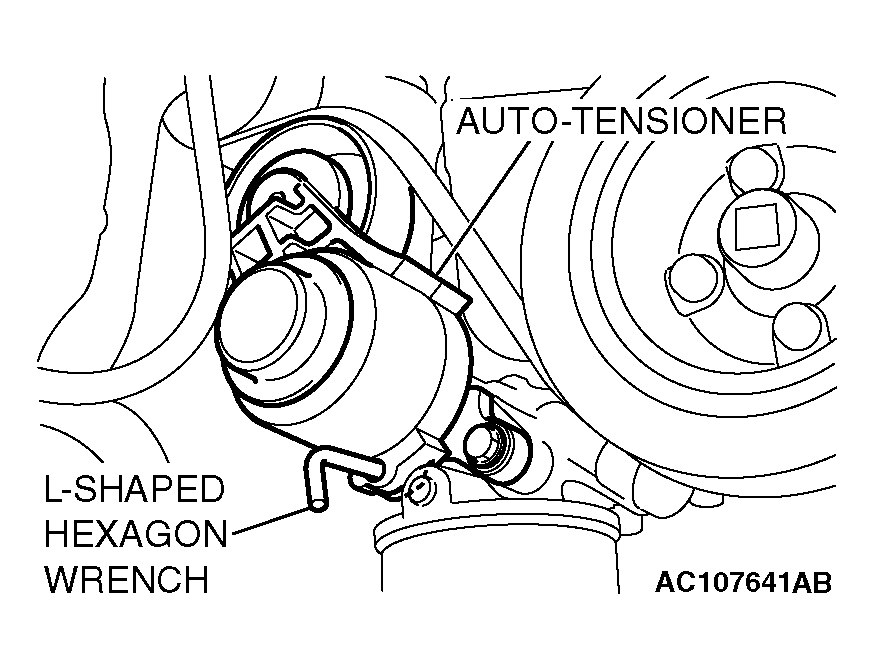

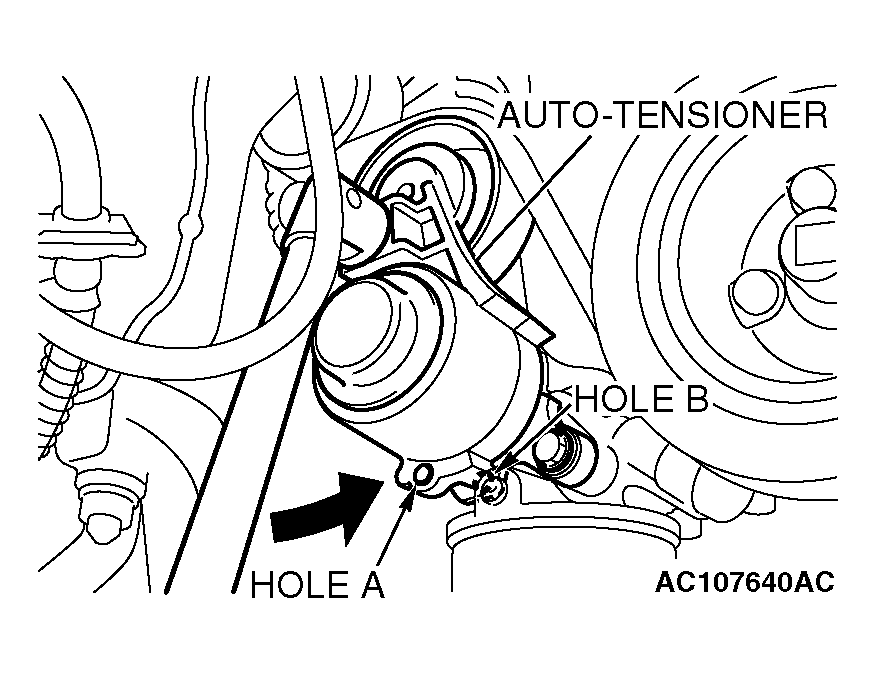

- Align hole A with hole B, insert an L-shaped hexagon wrench, etc. to fix and then remove the drive belt.
