Special Tool

SPECIAL TOOL

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
G04296062G04296063G04296064G04296065G04296066G04296067G04296068
 MB991958
Scantool (M.U.T.-III sub assembly)

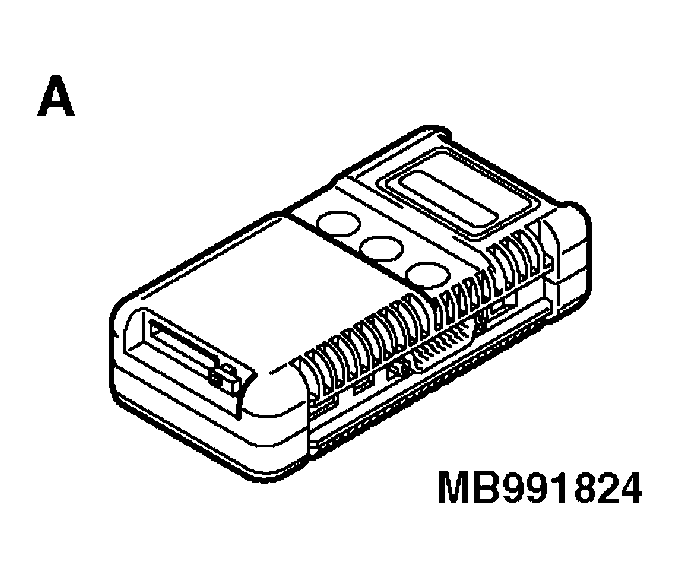

  1. MB991824 Vehicle communication interface (V.C.I.)

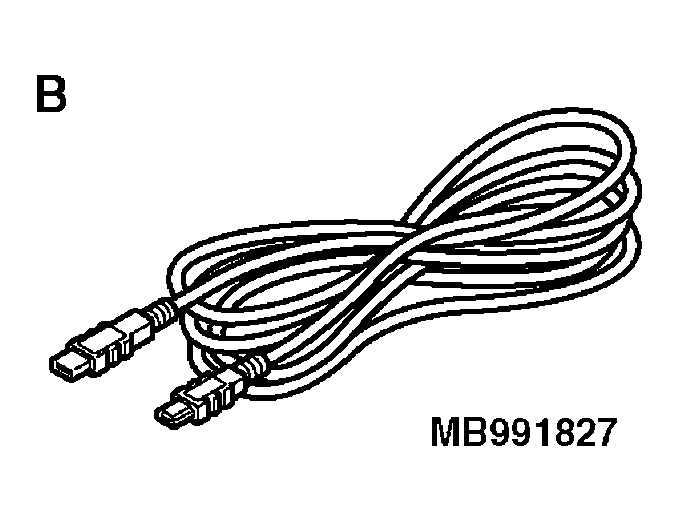

  2. MB991827 M.U.T.-III USB cable
  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)

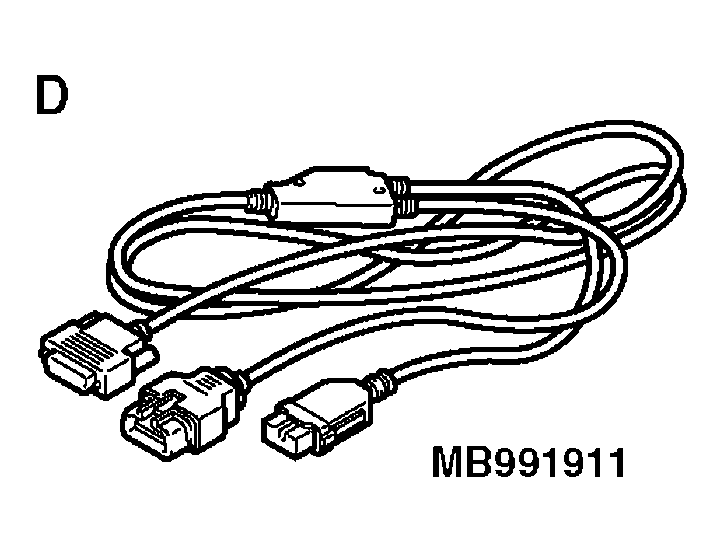

  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. MB991914 M.U.T.-III main harness C (for Daimler Chrysler models only)

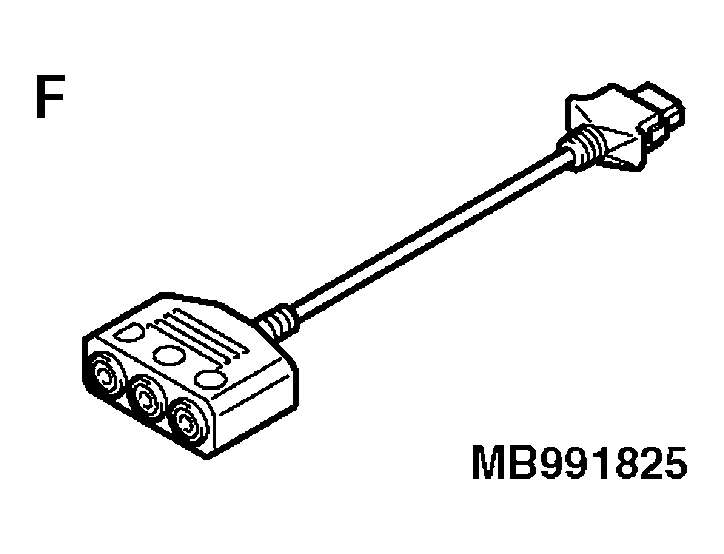

  6. MB991825 M.U.T.-III measurement adapter

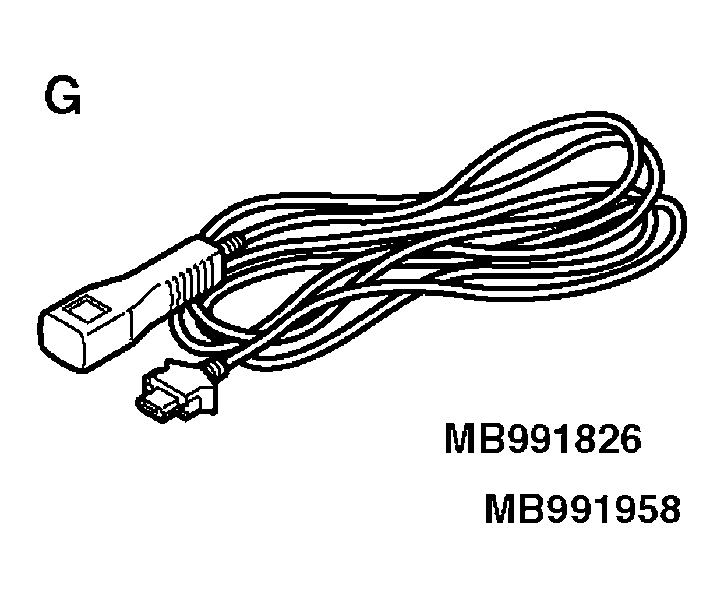

  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M. U. T. -III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking of engine idle speed
CAUTION: M.U.T.-III main harness B (MB991911) should be used. M.U.T.-III main harness A and C should not be used for this vehicle.
G04296069

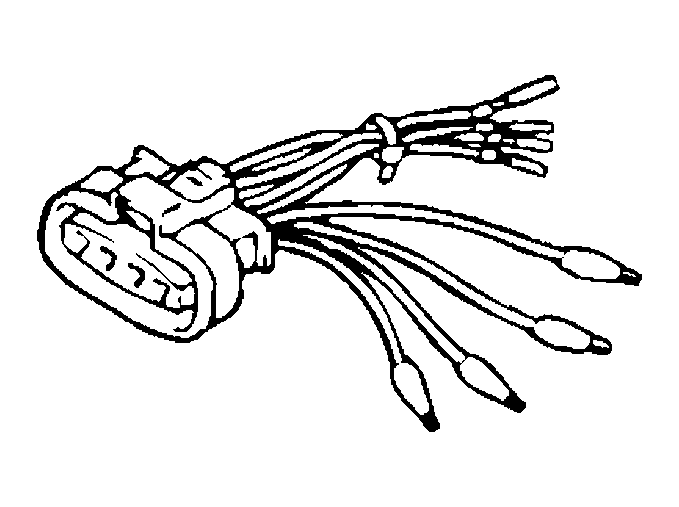

 MB991519
Generator harness connector		 MIT530
Micrd 530 charging system tester.		 Checking of generator ("S" terminal voltage)
