Special Tools

SPECIAL TOOLS SPECIFICATION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04298359G04298360G04298361G04298362
G04298359G04298360G04298361G04298362
G04298359G04298360G04298361G04298362
G04298359G04298360G04298361G04298362
 MB991223 Harness set

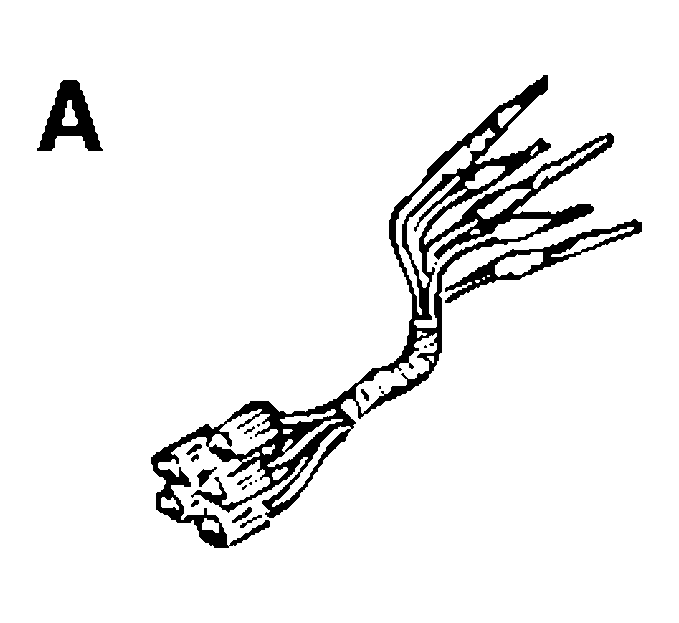

  1. MB991219 Test harness

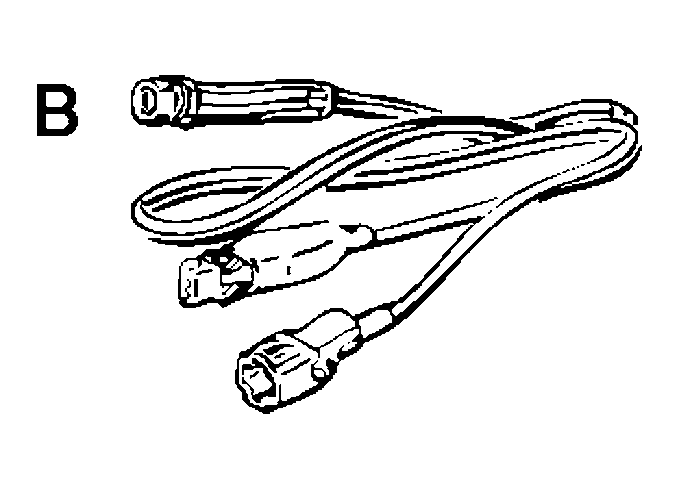

  2. MB991220 LED harness

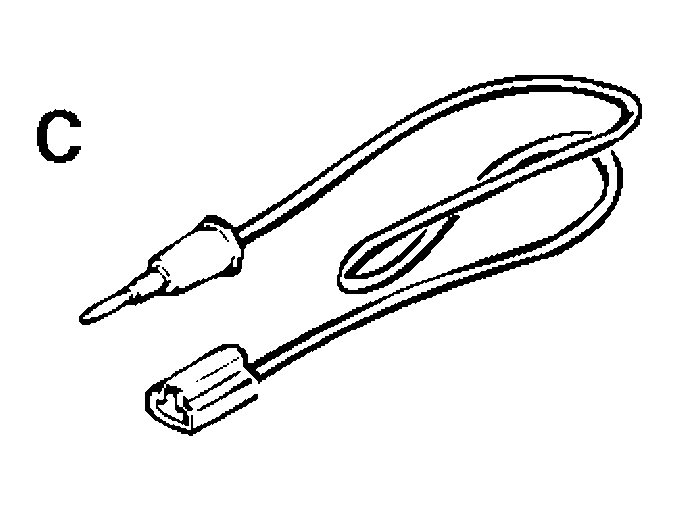

  3. MB991221 LED harness adapter

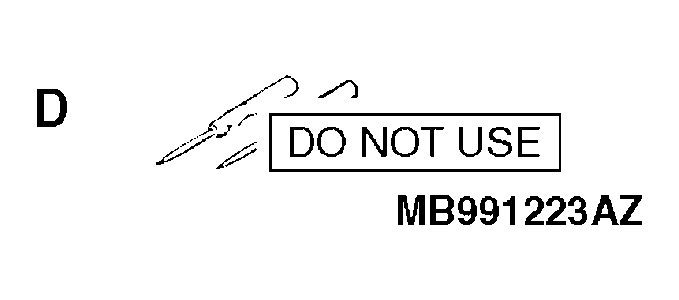

  4. MB991222 Probe
 MB991223 Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection

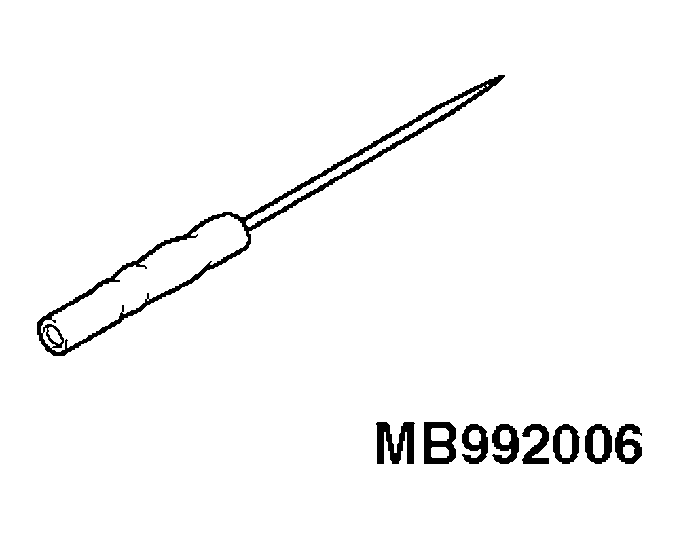

G04298363
 MB992006
Extra fine probe		 General service tool Making voltage and resistance measurement during troubleshooting

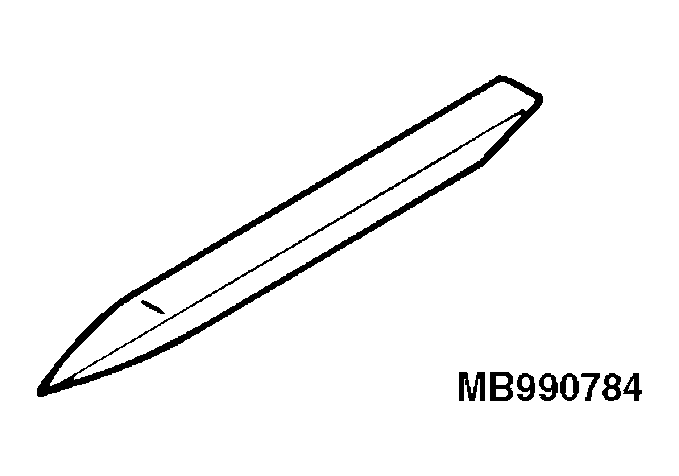

G04298364
 MB990784
Ornament remover		 General service tool Removal of meter bezel
