Component Location

For fuse box locations, refer to illustrations below.

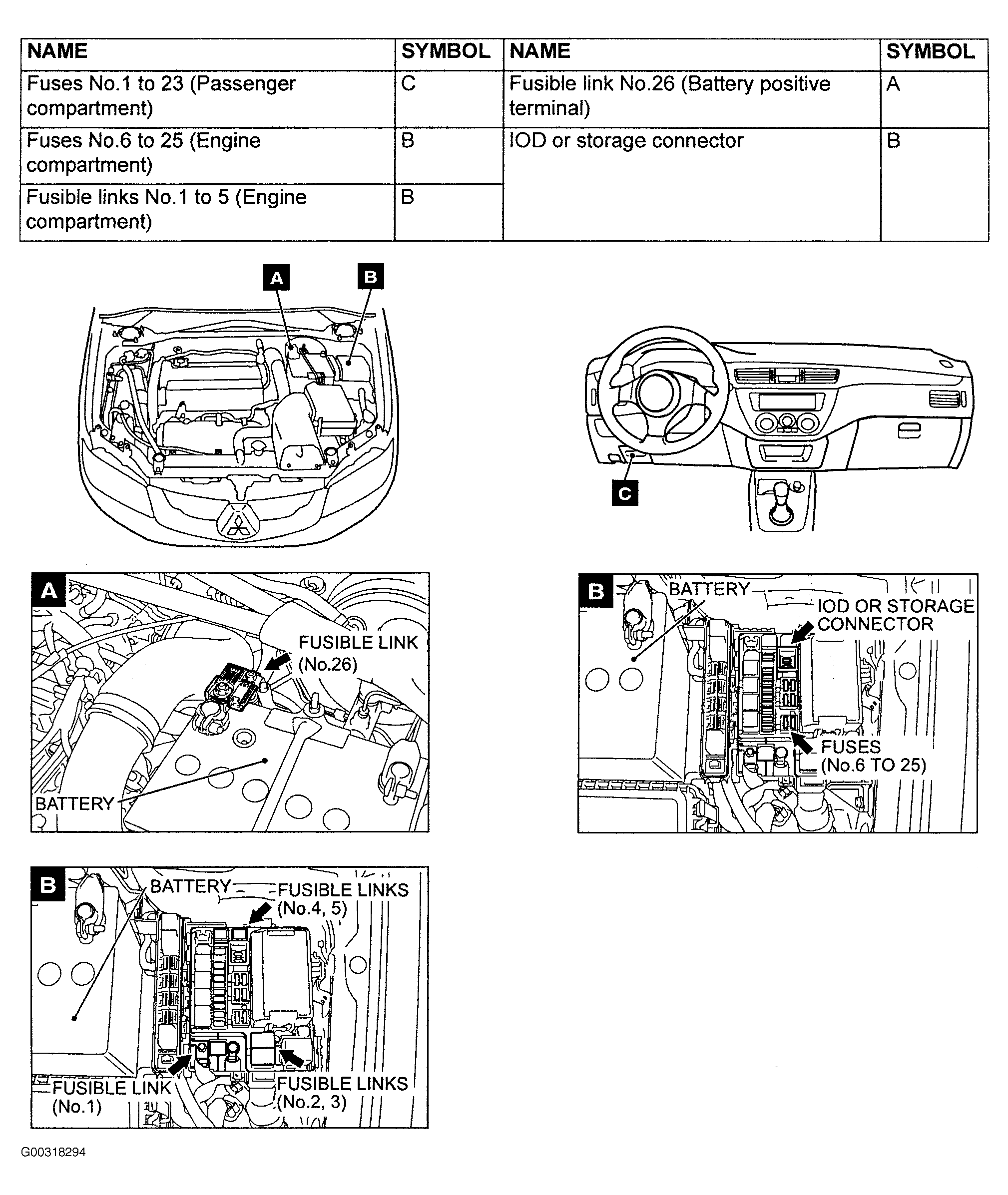

Fig 1: Identifying Engine Compartment Fuses & Fusible Links
G00490438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

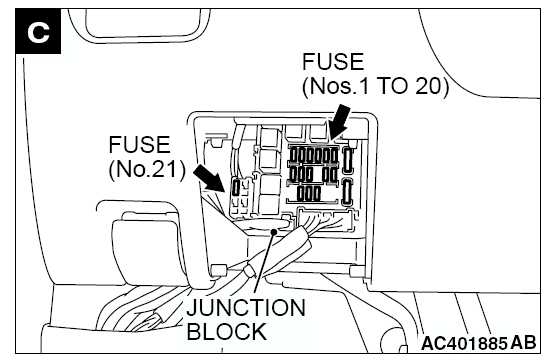

Fig 2: Identifying Passenger Compartment Fuses
G00490437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
