Passenger Compartment

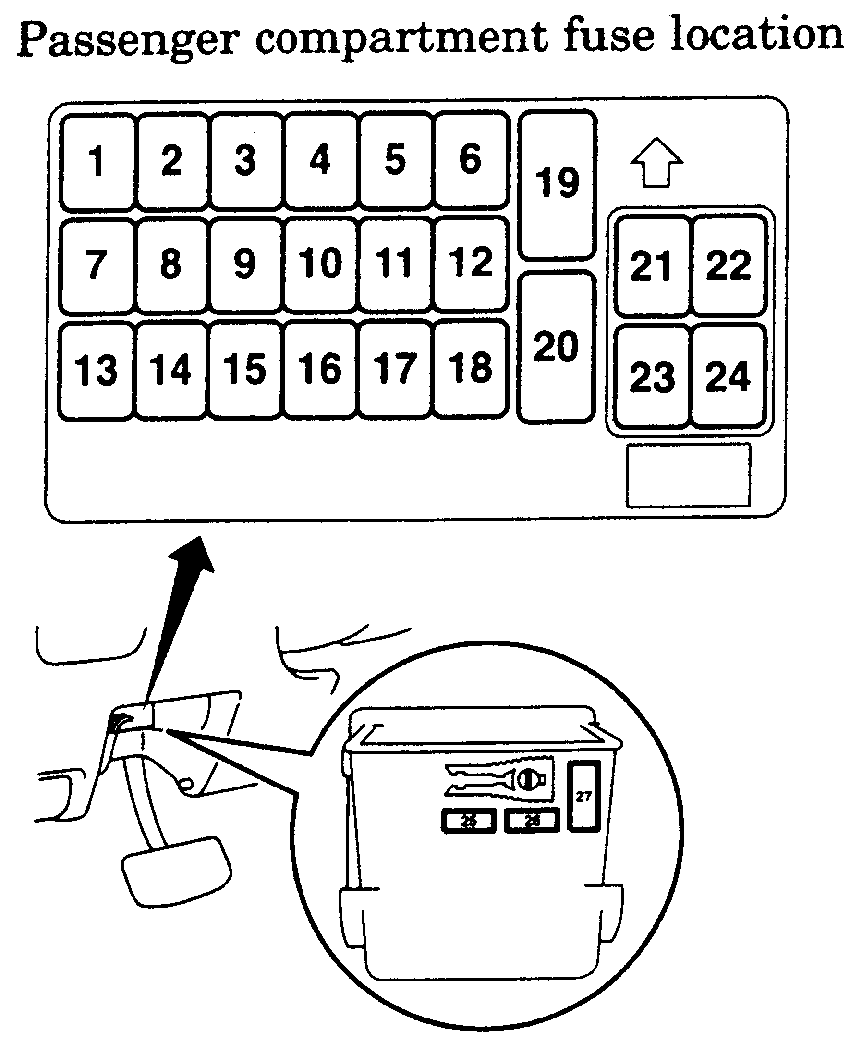

For fuse location and values, see Fig 1.
IDENTIFYING FUSES (PASSENGER COMPARTMENT)
| NO. | POWER SUPPLY CIRCUIT | FUSE TYPE | RATED CAPACITY (A) | HOUSING COLOR | LOAD CIRCUIT |
| 1 | Ignition switch (IG1) | Fuse | 10 | Red | Ignition coil |
| 2 | Ignition switch (IG1) | Fuse | 7.5 | Brown | 4WD-ECU, column switch, combination meter, ETACS-ECU, SRS-ECU and vehicle speed sensor |
| 3 | Ignition switch (IG1) | Fuse | 7.5 | Brown | ETACS-ECU, rear combination light assembly (BACKUP) and SRS-ECU |
| 4 | Ignition switch (IG1) | Fuse | - | - | - |
| 5 | Ignition switch (IG2) | Fuse | 7.5 | Brown | A/C compressor clutch relay, blower relay, condenser fan control relay, front-ECU, heater control, outside/inside air selection damper control motor, rear window defogger relay and steering angular velocity sensor |
| 6 | Fuse No.20 | Fuse | - | - | - |
| 7 | Ignition switch (ACC) | Fuse | 20 | Yellow | Front-ECU and windshield wiper motor |
| 8 | Ignition switch (IG1) | Fuse | 7.5 | Brown | Fuel pump relay (1), fuel pump relay (2) and engine control module |
| 9 | Ignition switch (ACC) | Fuse | 15 | Blue | Cigarette lighter |
| 10 | Ignition switch (ACC) | Fuse | - | - | - |
| 11 | Ignition switch (ACC) | Fuse | 7.5 | Brown | Remote control mirror |
| 12 | Ignition switch (IG2) | Fuse | 7.5 | Brown | 4WD-ECU, ABS-ECU, G-sensor (LATERAL), G-sensor (LONGITUDINAL) and sunroof motor assembly |
| 13 | Ignition switch (ACC) | Fuse | - | - | - |
| 14 | Ignition switch (ACC) | Fuse | 15 | Blue | ETACS-ECU and rear wiper motor |
| 15 | Fusible link No.1 (Battery/alternator) | Fuse | 15 | Blue | Data link connector |
| 16 | Fusible link No.1 (Battery/alternator) | Fuse | - | - | - |
| 17 | Fusible link No.1 (Battery/alternator) | Fuse | - | - | - |
| 18 | Fusible link No.1 (Battery/alternator) | Fuse | - | - | - |
| 19 | Fusible link No.1 (Battery/alternator) | Fuse | 30 | Green | Blower motor, heater control and resistor |
| 20 | Fusible link No.1 (Battery/alternator) | Fuse | 30 | Green | Rear window defogger |
| 21 | Fusible link No.5 (Battery/alternator) | Fuse | 20 | Yellow | Sunroof motor assembly |
| 22 | - | Fuse | - | - | - |
| 23 | - | Fuse | - | - | - |
| 24 | - | Fuse | - | - | - |
Some fuses may not be installed on your vehicle, depending on the vehicle model or specifications.
The table above shows the main equipment corresponding to each fuse.
The fuse box does not contain spare 7.5A 10A and 15A fuses. If a fuse of one of these capacities blows, replace it temporarily by borrowing a fuse of correct rating from:
- 7.5A: Door mirror heater
- 10A: Dome light (Engine Compartment)
- 15A: Cigarette lighter (Power outlet)
Replace the borrowed fuse as soon as possible.
