>> C << Transaxle Assembly Installation

  1. Install the transaxle assembly. (Refer to Refer to < W5M51 > , or < W6MAA > )
  2. Remove from the car the 2 bolts, to assemble the radiator support upper insulator.

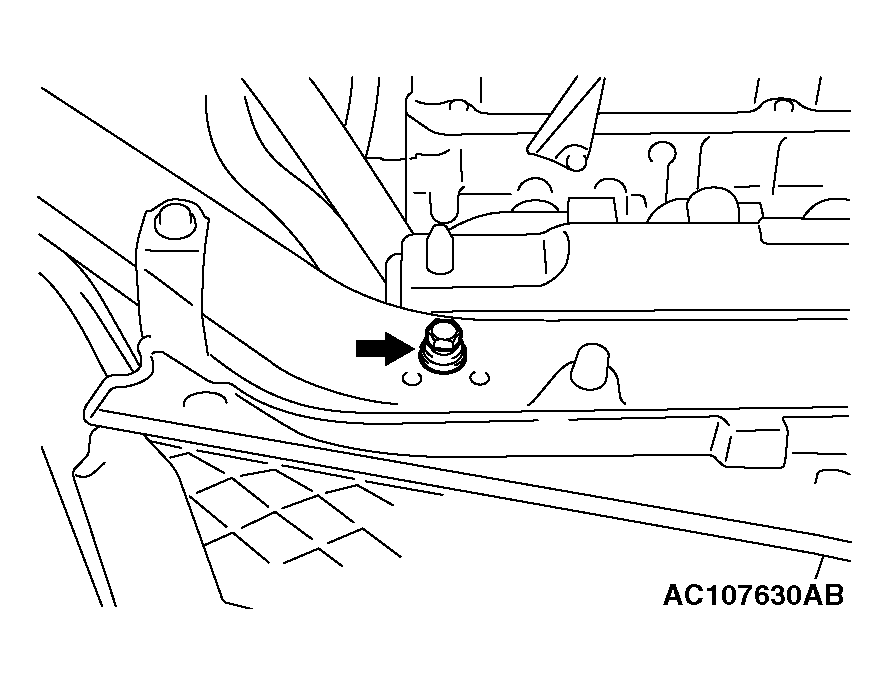

    Fig 1: Identifying Radiator Support Upper Insulator Assembling Bolt
    G04293989Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
