Emission Control - Lancer Evolution
>>
Vacuum Hoses
>>
Vacuum Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Vacuum Circuit Diagram

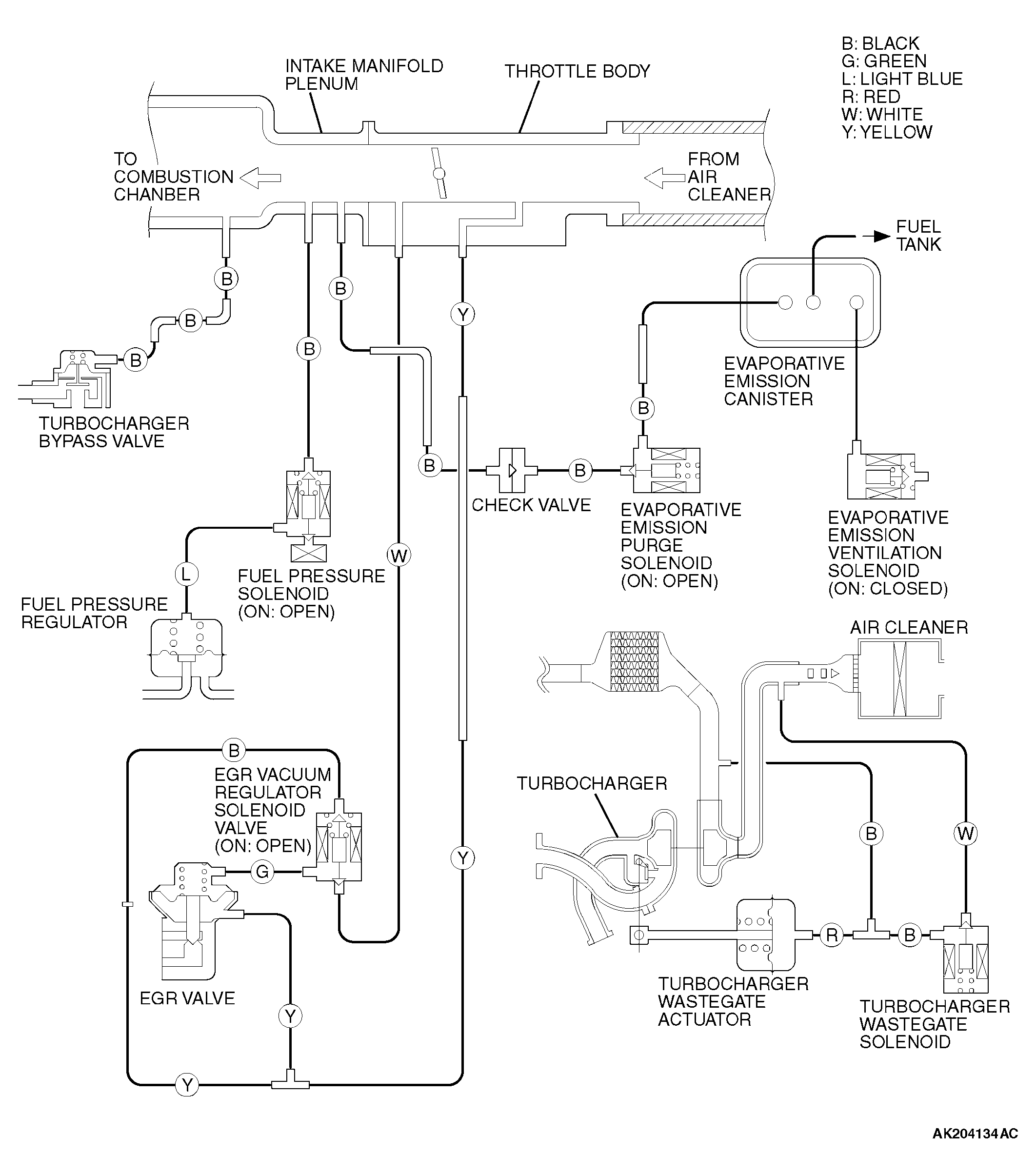

Fig 1: Vacuum Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
