Connector Inspection Service Points Visual Inspection
WARNING: This page is about a different variant/trim than selected.

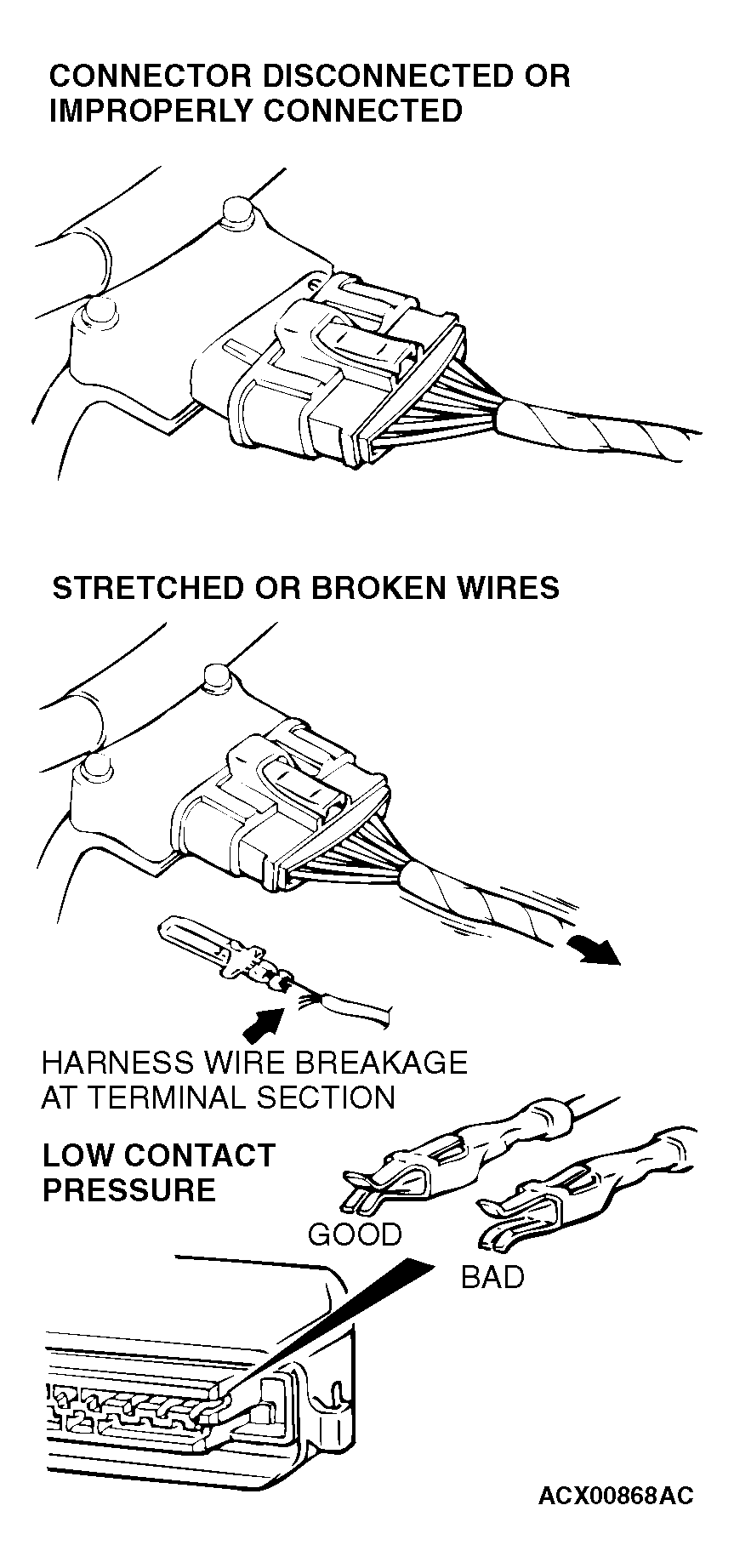

- Connector is disconnected or improperly connected
- Connector pins are pulled out
- Stretched an broken wires at terminal section
- Low contact pressure between male and female terminals
- Low connection pressure due to rusted terminals or foreign matter lodged in terminals
