SPECIAL TOOLS CHART
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|
| A B C D E F G |
MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 MUT-III sub assembly A: Vehicle communication interface (V.C.I.) B: MUT-III USB cable C: MUT-III main harness A (Vehicles with CAN communication system) D: MUT-III main harness B (Vehicles without CAN communication system) E: MUT-III main harness C (for Daimler Chrysler models only) F: MUT-III measurement adapter G: MUT-III trigger harness |
MB991824-KIT
NOTE:
G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
|
Reading MFI system diagnostic trouble code
CAUTION:
MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
|

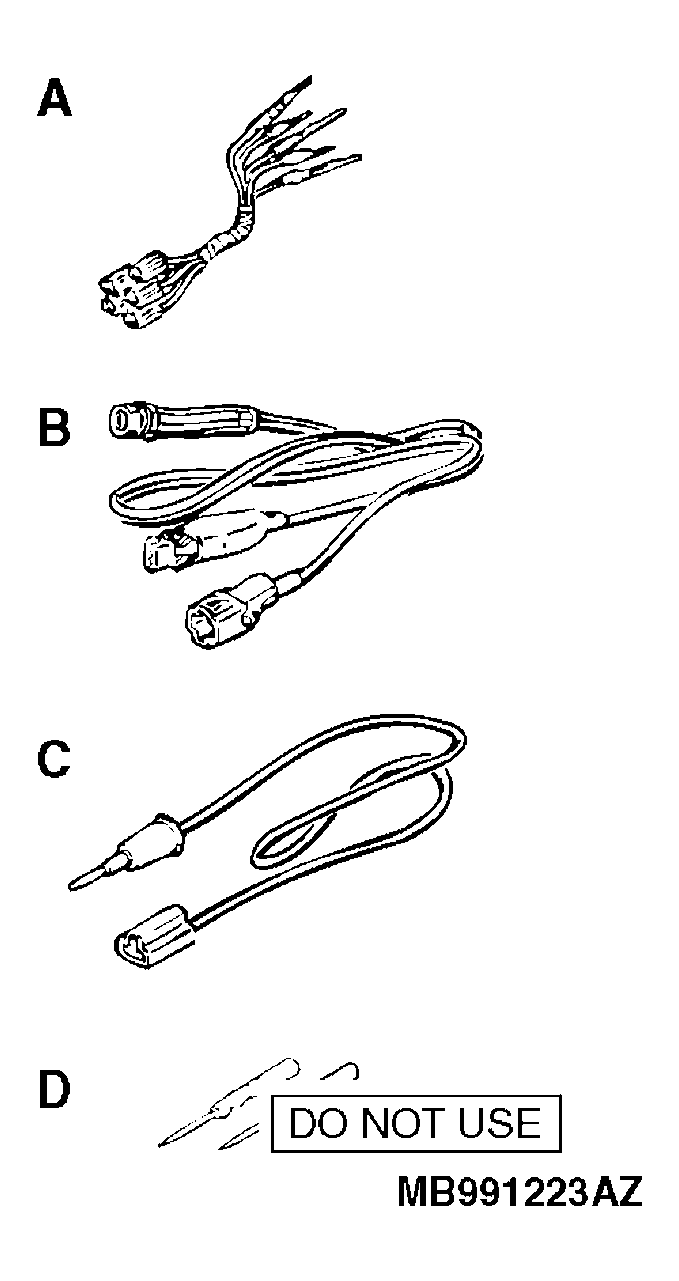

| MB991223 A: MB991219 B: MB991220 C: MB991221 D: MB991222 Harness set A: Test harness B: LED harness C: LED harness adaptor D: Probe |
General service tools | Making voltage and resistance measurement during troubleshooting A: Connector pin contact pressure inspection B: Power circuit inspection C: Power circuit inspection D: Commercial tester connection |
|
| MB992006 Extra fine probe |
General service tool | Making voltage and resistance measurement during troubleshooting | |
| MB990784 Ornament remover |
General service tool | Removal of meter bezel |
