< 2.4L Engine >

WARNING: This page is about a different variant/trim than selected.

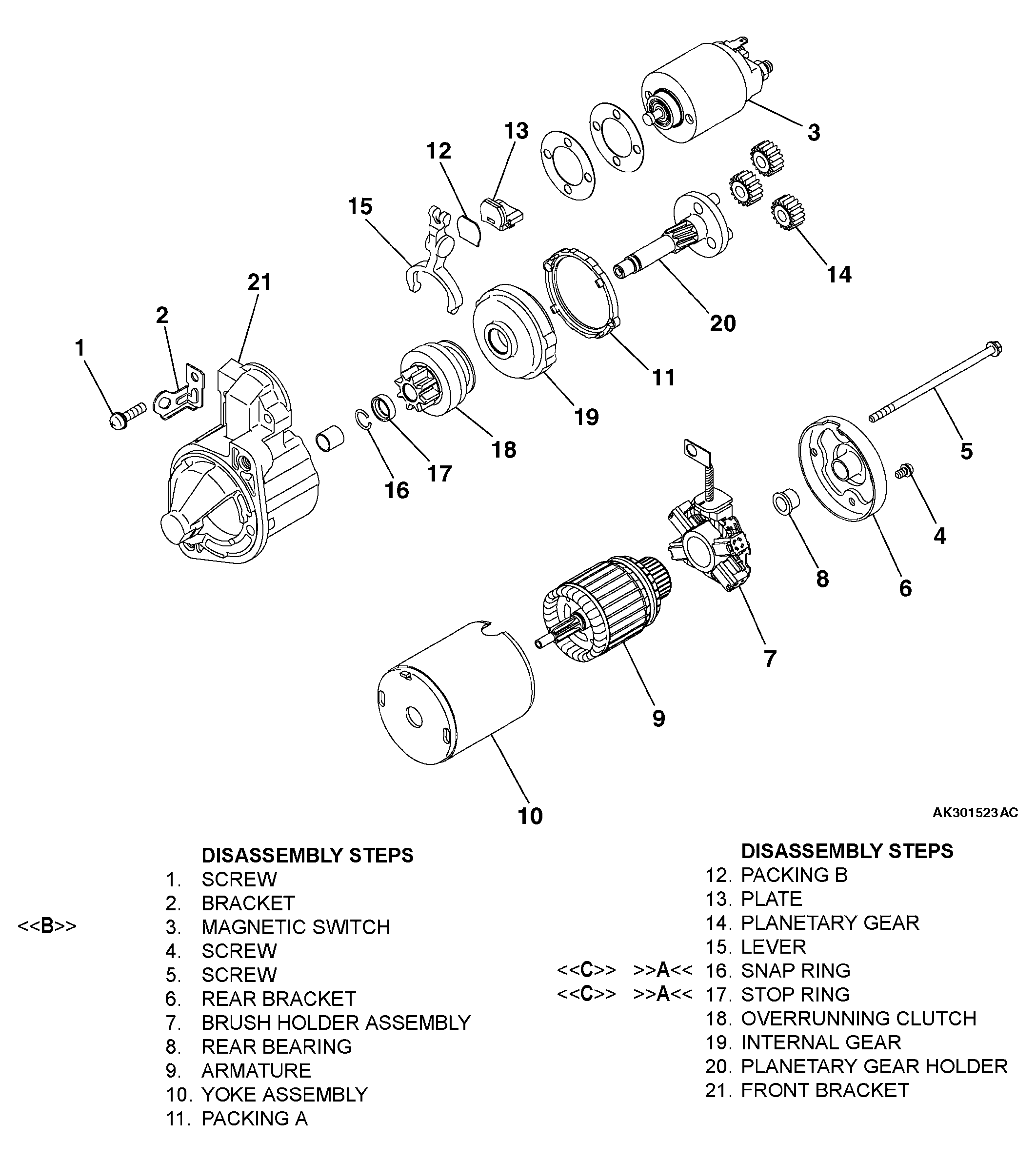

Fig 1: Disassembling/Assembling (2.4L Engine)
G04271545Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
