Overrunning Clutch

WARNING: This page is about a different variant/trim than selected.
  1. Make sure that the pinion cannot be turned counterclockwise, and can be turned clockwise freely.
  2. Check the pinion for abnormal wear and damage.

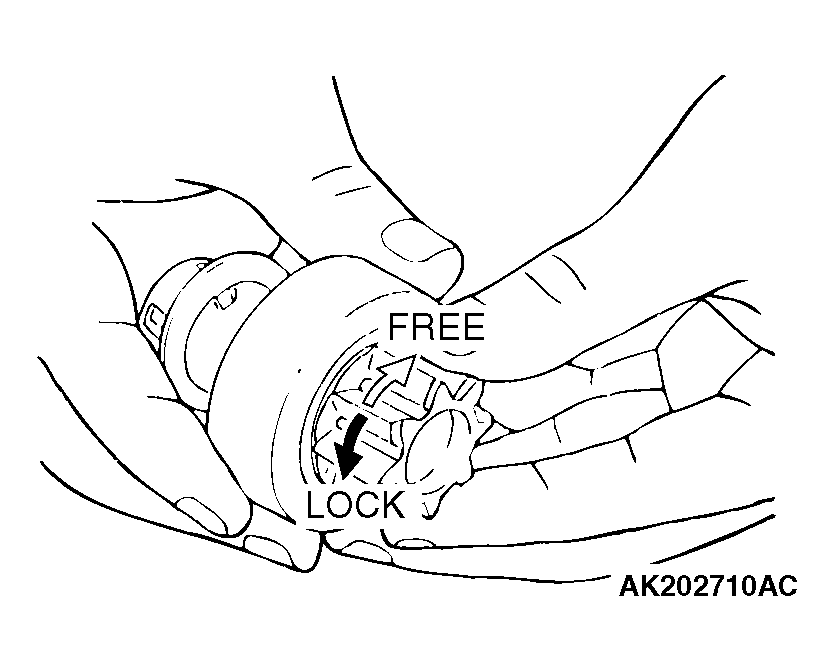

    Fig 1: Checking Pinion For Abnormal Wear And Damage
    G04271554Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
