Removal And Installation < 2.4L Engine, Except For CALIFORNIA>: Notes

WARNING: This page is about a different variant/trim than selected.

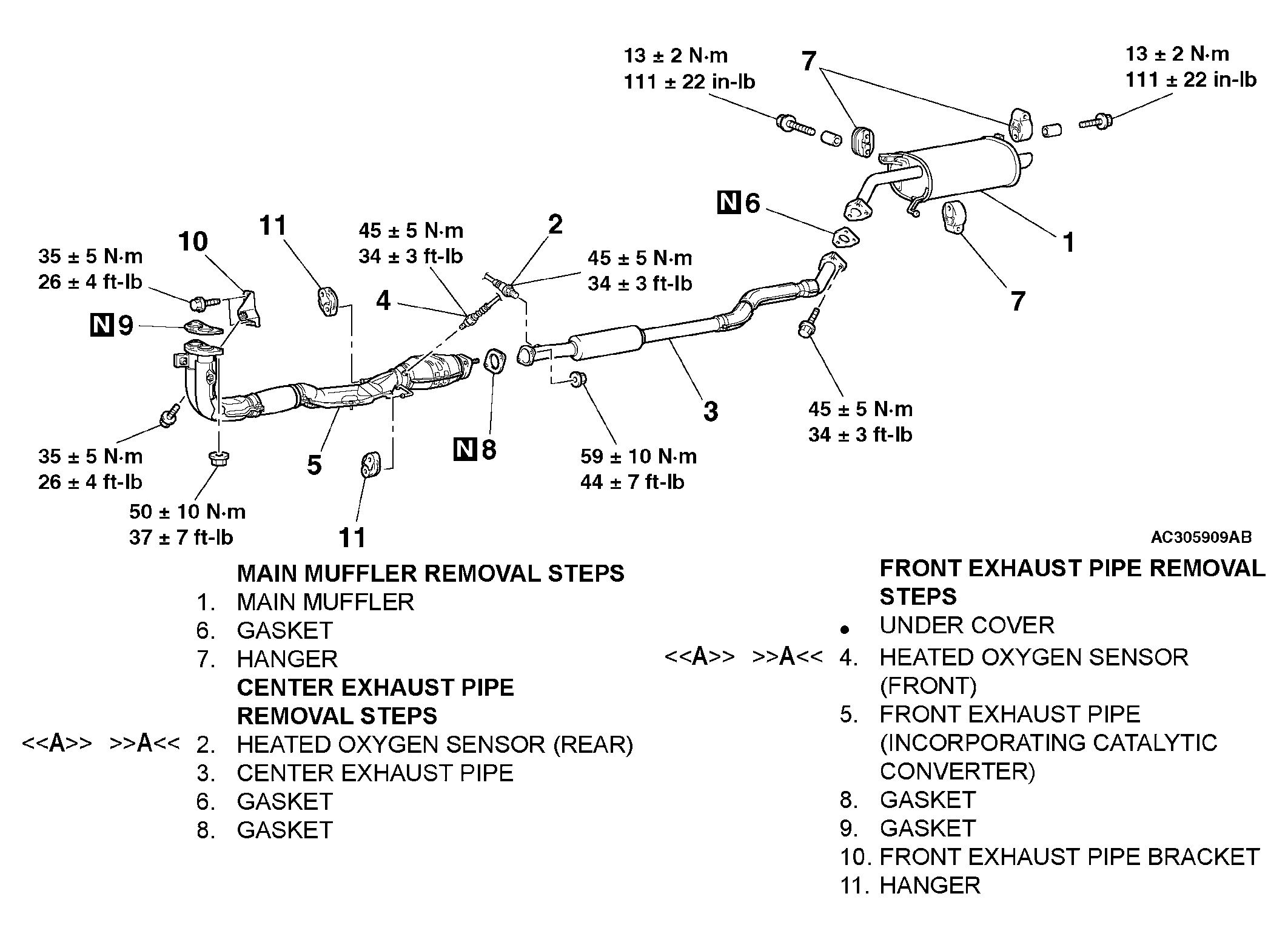

Fig 1: Removing/Installing (2.4L Engine, Except For California)
G04271487Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
