<< A >> Piston Boot/Front Brake Caliper Piston Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Blow air little by little to remove the piston. The piston will rush out if a force of air is applied suddenly.

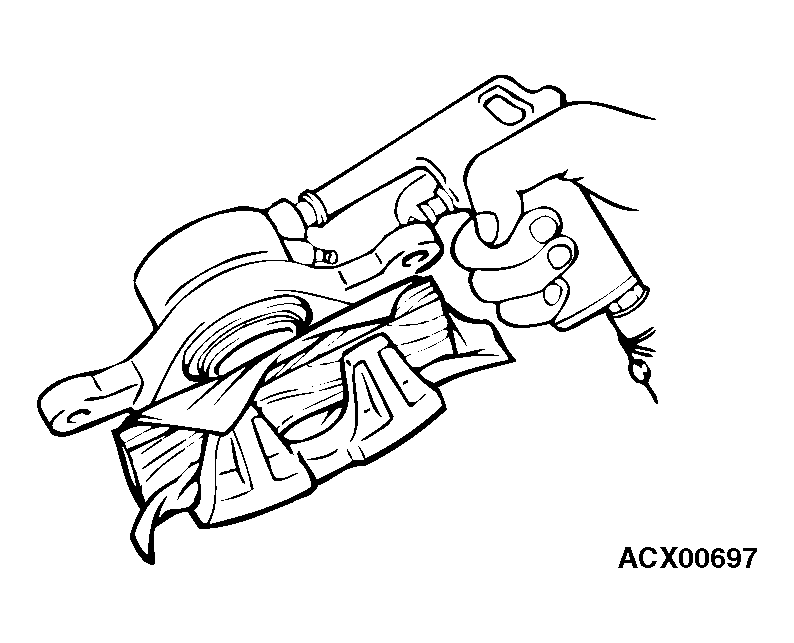

Place a piece of wood, etc. against the caliper body as shown. Blow compressed air through the brake hose to remove the piston boot and piston.
