>>A<< Rear Brake Assembly Installation

WARNING: This page is about a different variant/trim than selected.

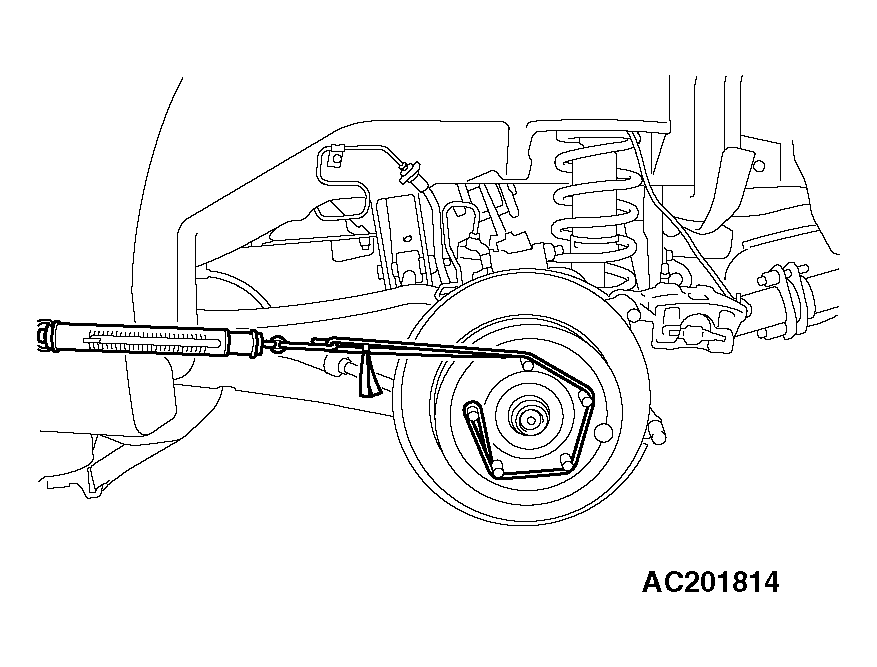

In order to measure the brake drag torque, measure the hub torque with the pads removed by the following procedure. Use a spring scale to measure the hub torque in the forward direction. Record hub torque with pads removed.
CAUTION: Do not let any oil, grease or other contamination get onto the friction surfaces of the pads and brake discs.
After re-installing the caliper support to the backing plate, install the pad clips and the pads to the caliper support.

Fig 1: Installing Rear Brake Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

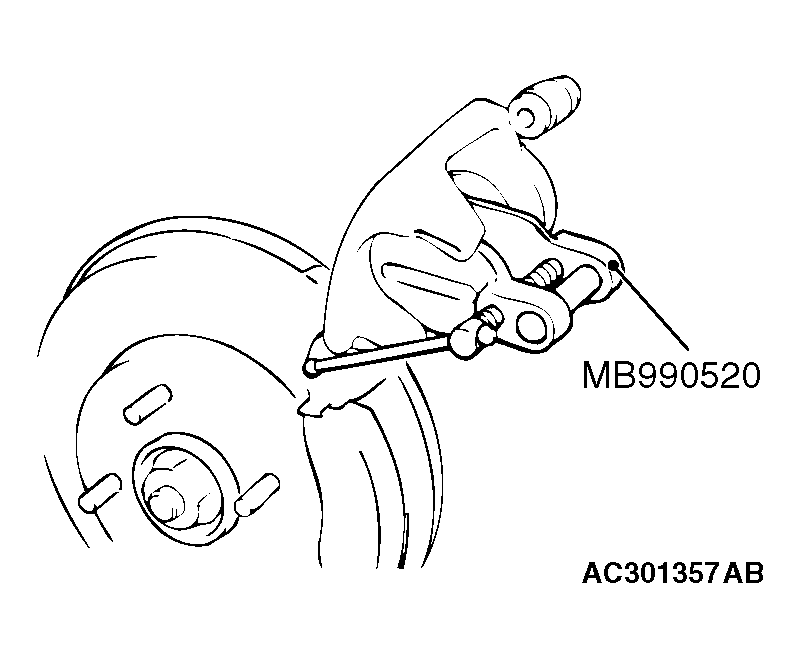

Clean the piston and insert into cylinder with special tool MB990520.
Be careful that the piston boot does not become caught, when lowering the caliper assembly and installing the lock pin.

Fig 2: Installing Pad Clips And Pads To Caliper

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
