>>C<< Shoe And Lever Assembly/Adjuster Lever/ Shoe And Lining Assembly/Shoe-To-Lever Spring/ Auto Adjuster Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Assemble the shoe and lever assembly, the adjuster lever, the shoe and lining assembly, the shoe-to-lever spring, the automatic adjuster assembly temporarily.

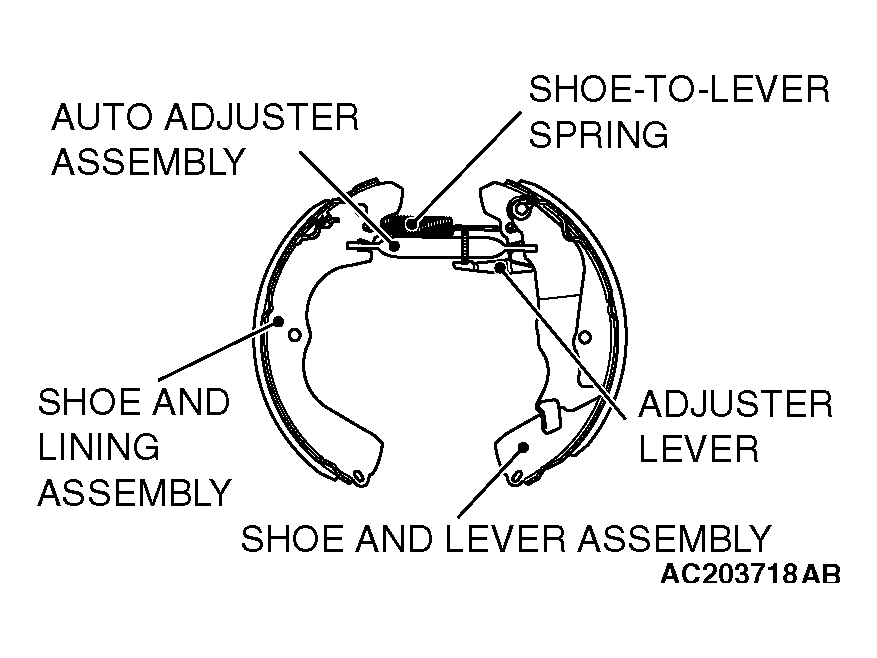

Fig 1: Assembling Shoe And Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Depress the wheel cylinder piston by hand.

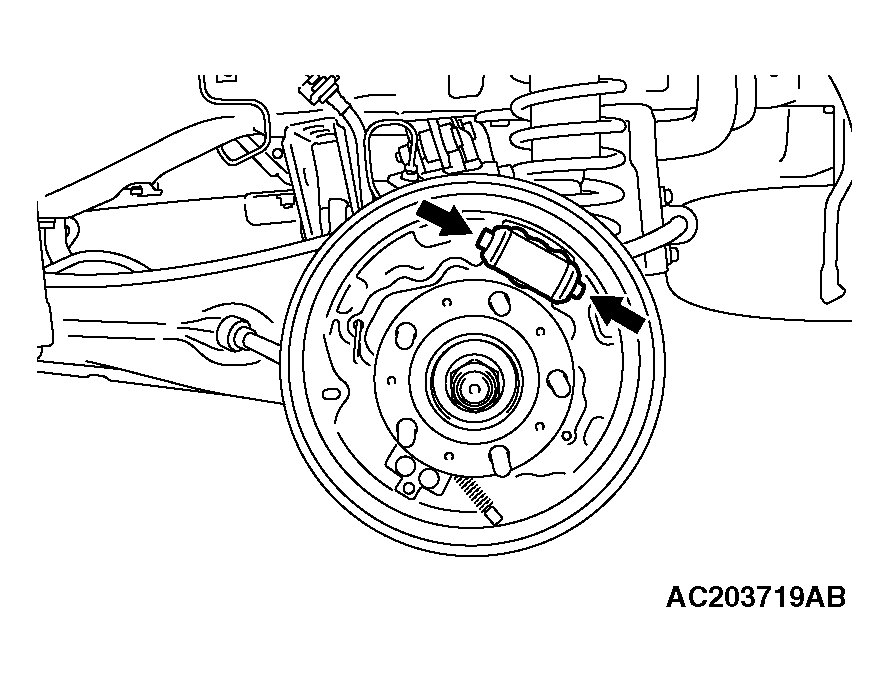

Fig 2: Depressing Wheel Cylinder Piston By Hand
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the assembly to the backing plate carefully.

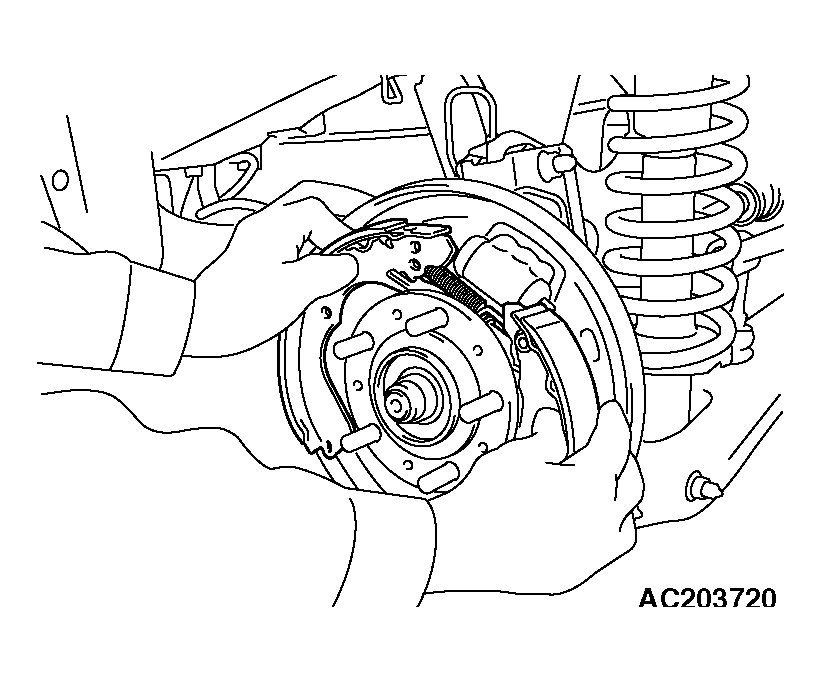

Fig 3: Installing Assembly To Backing Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
