>>B<< Lock Pin Installation

WARNING: This page is about a different variant/trim than selected.

Install the lock pin so that it will be oriented in the direction shown.

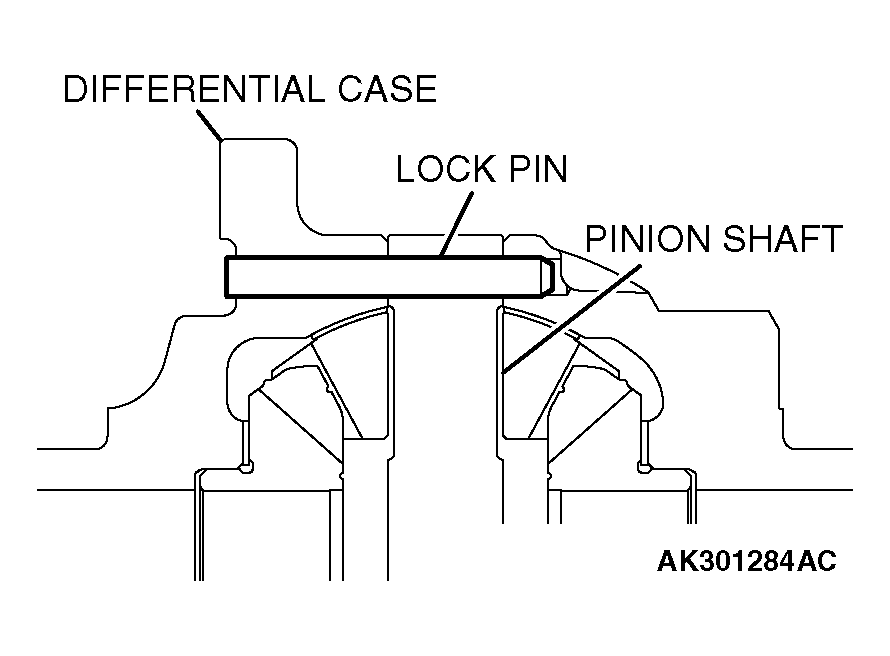

Fig 1: Installing Lock Pin

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
