>>B<< Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Place the snap ring on top of the spring retainer, and then set special tool MD998907 and MD998924 as shown in the illustration.
  2. Compress the return spring and install the snap ring.

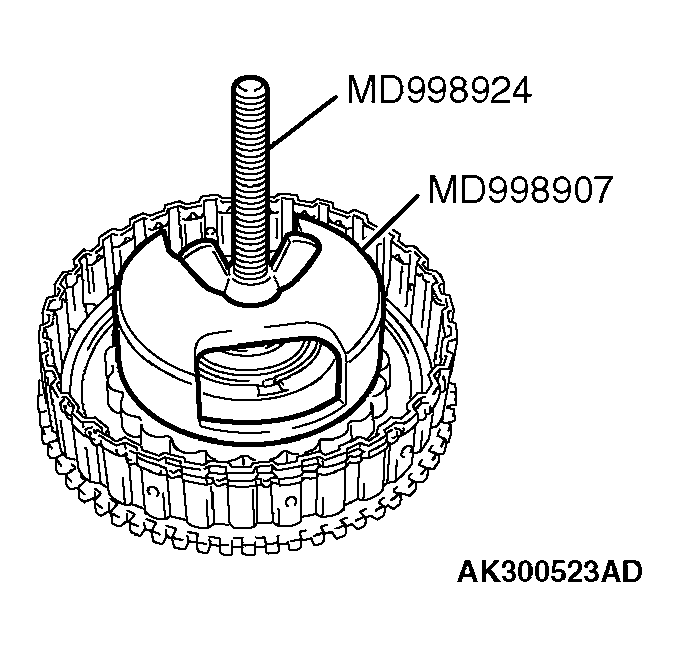

    Fig 1: Compressing Return Spring
    G04277320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
