Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

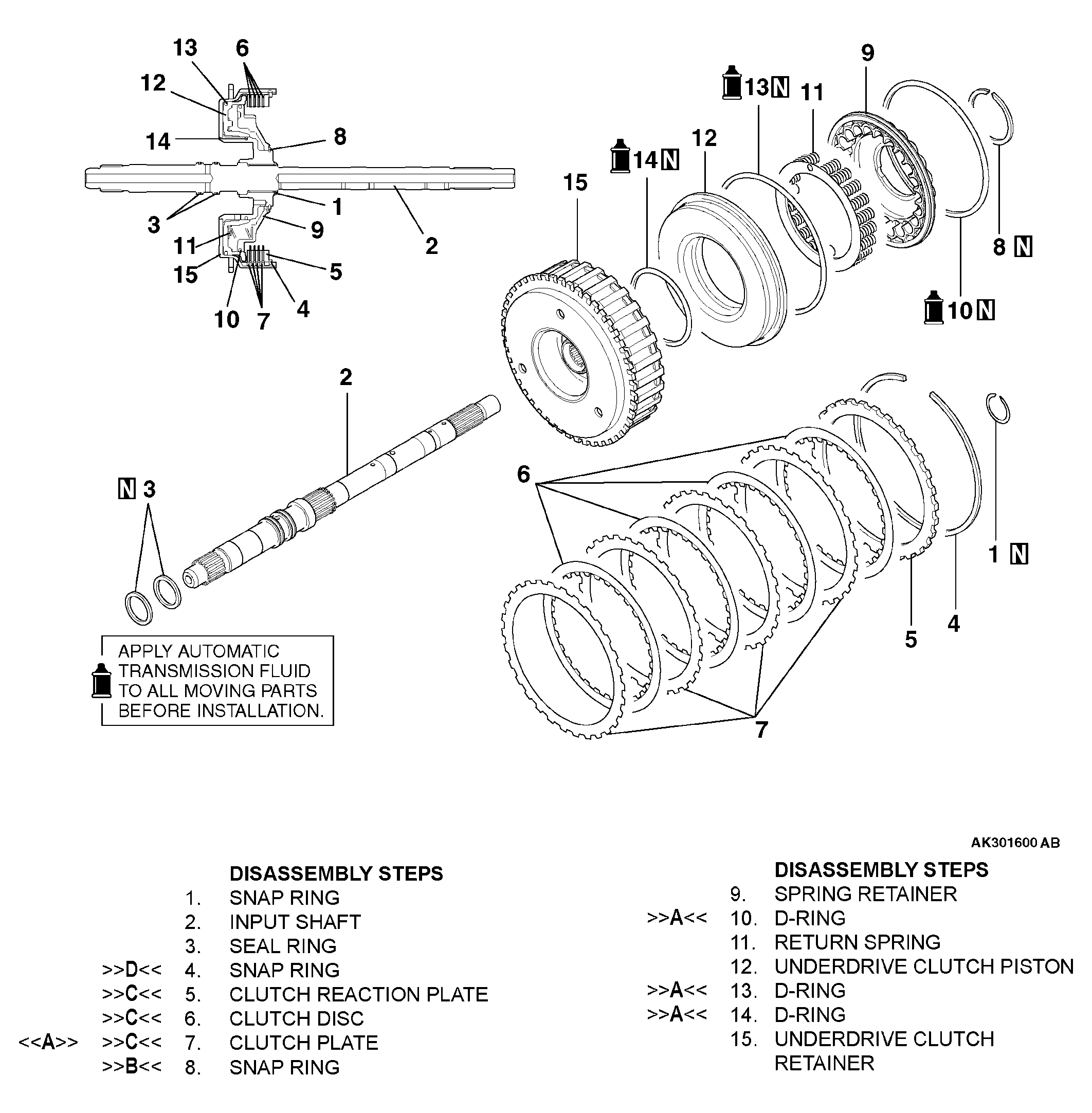

Fig 1: Disassembling/Assembling Of Underdrive Clutch And Input Shaft
G04277319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
