< Vehicles Without Center Bearing >: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and assembly.
Never disassemble the BJ assembly except when replacing the BJ boot.

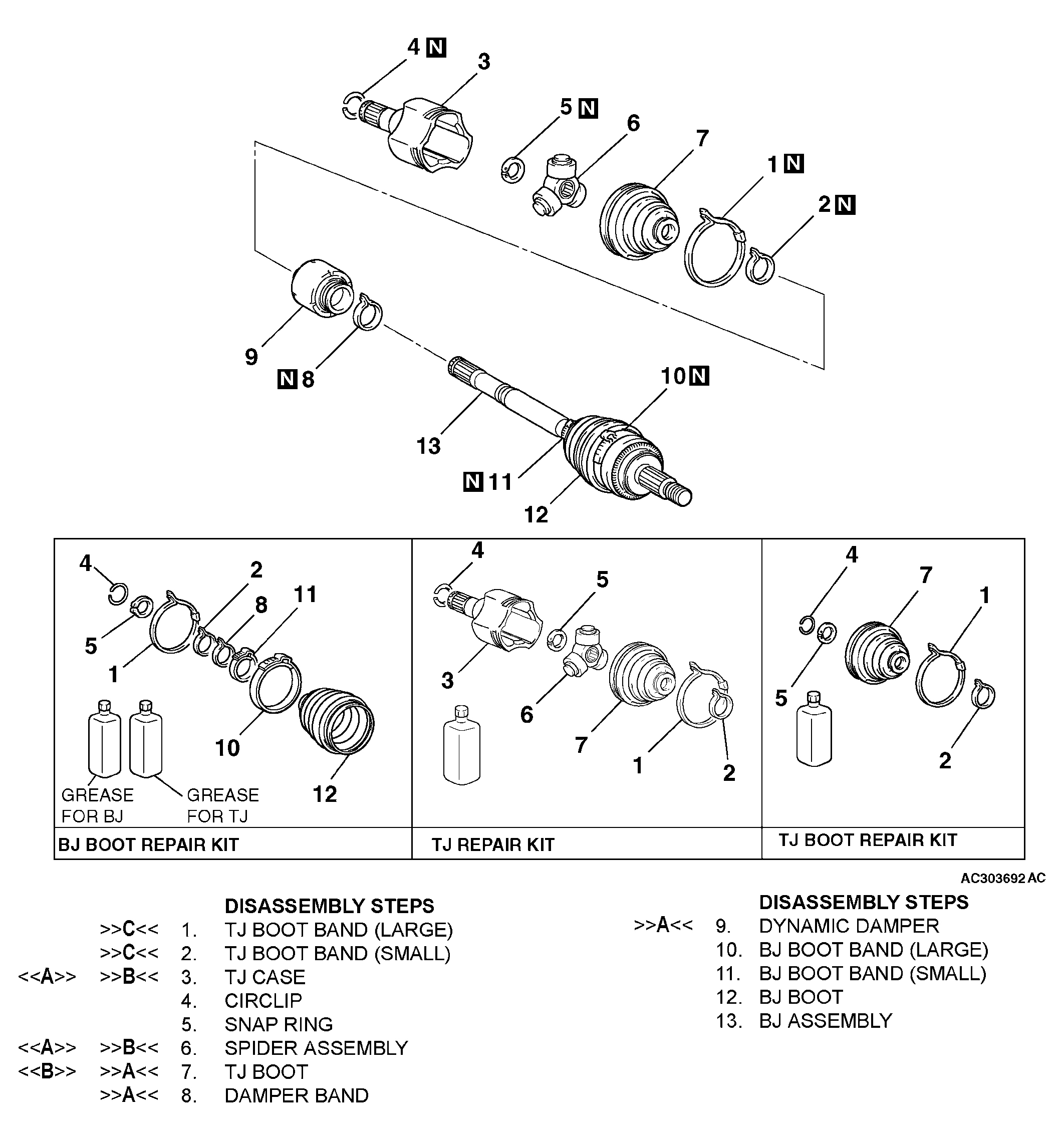

Fig 1: Disassembling/Assembling Vehicles Without Center Bearing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
