>>C<< Center Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Use special tools MB990938 and MB990932 to press-fit the center bearing into the center bearing bracket.

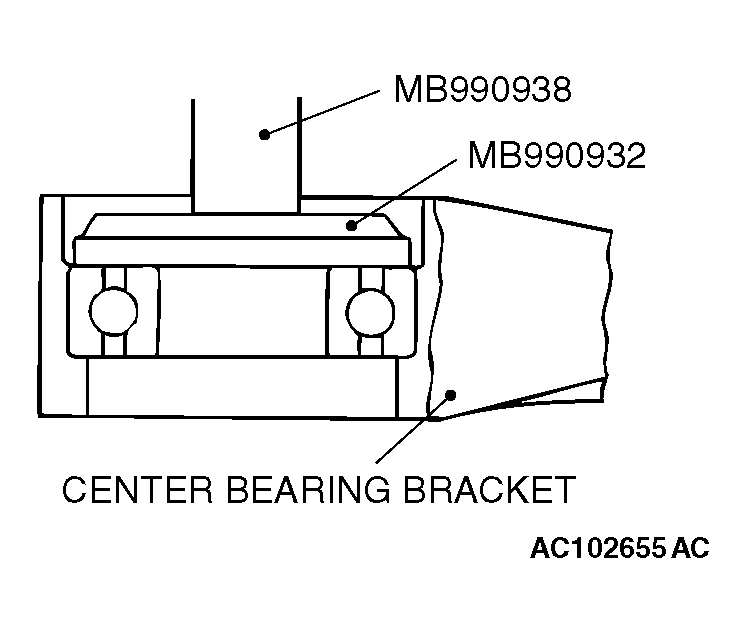

Fig 1: Installing Center Bearing
G04277435Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
