>>E<< Inner Shaft Installation

WARNING: This page is about a different variant/trim than selected.

Use special tool MB991172 to hold the center bearing inner race, and then press-in the inner shaft.

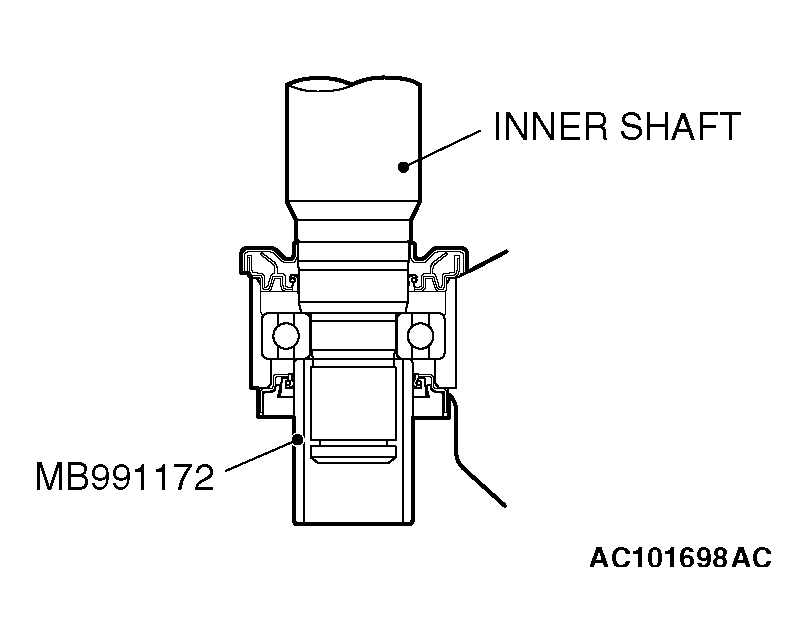

Fig 1: Installing Inner Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Apply repair kit grease to the inner shaft spline, then press fit it into the ETJ case.

NOTE: When press-fitting the inner shaft into the ETJ case, apply a thin coat of repair kit grease to the dust seal outer lip part and the outside edge of the ETJ axial part.

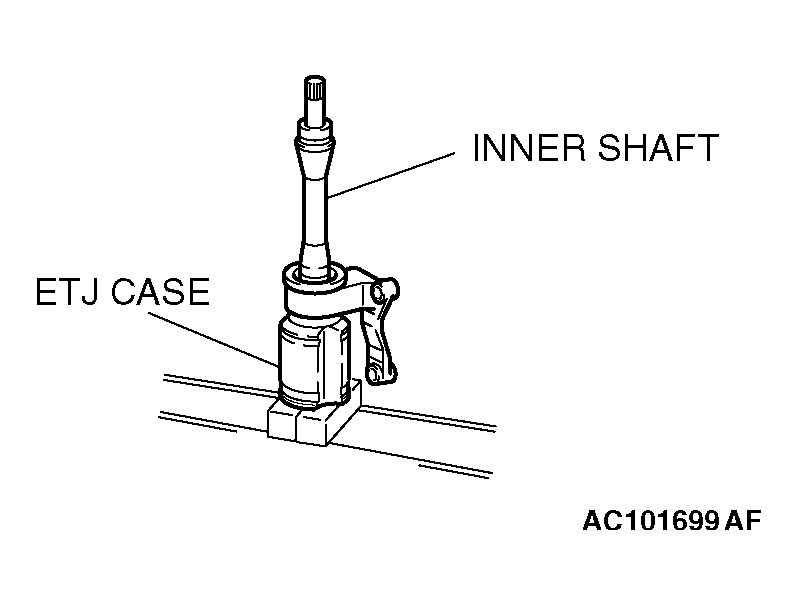

Fig 2: Installing ETJ Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
