>>A<< Stabilizer Rubber/Jam Nut (Stabilizer Bar Connection) Installation
WARNING: This page is about a different variant/trim than selected.

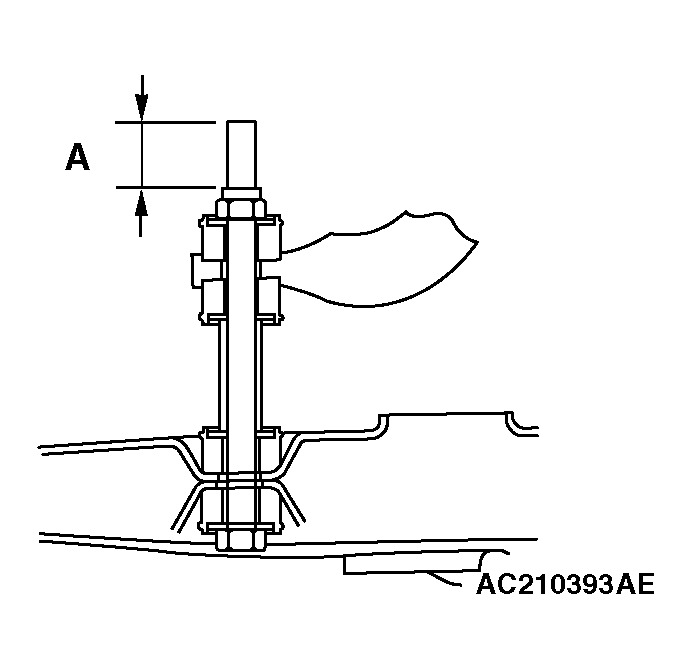

Install the stabilizer rubber and collar as shown in the figure, and tighten the jam nut so that the protruding length of the stabilizer bar mounting bolt protruding part meets its standard value (A).
Standard value (A): 22 +/- 1.5 mm (0.87 +/- 0.06 inch)
