Clock Spring Check

If any malfunction is found in the following inspections, replace the clock spring with a new one.

1. Check the connectors and protective tube for damage, and the terminals for deformation.
2. Visually check the case for damage.
3. Check to see that there is a charge (continuity) between the C-204 clock spring connector terminal and C-203 horn switch.

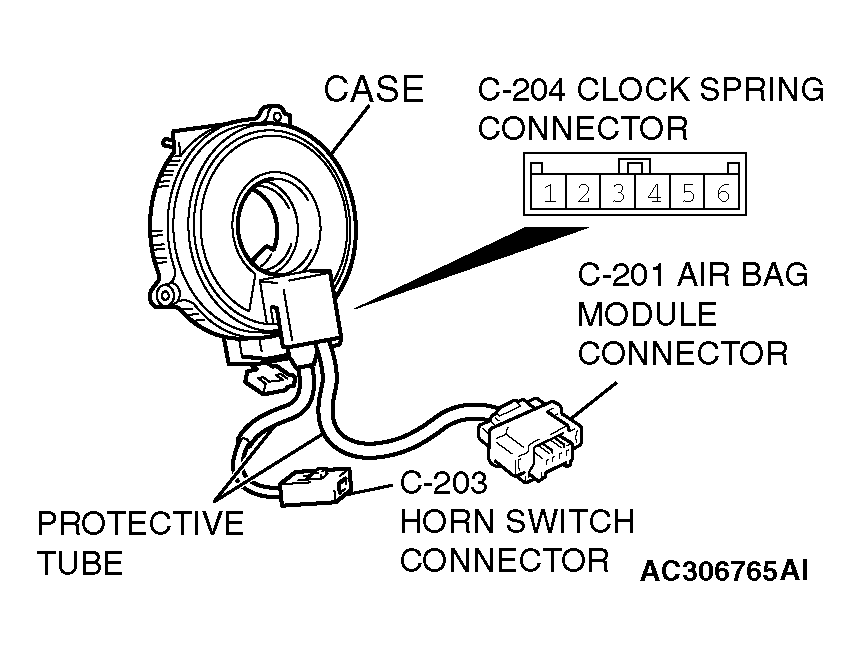

   Fig 1: Checking Clock Spring

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION: Do not directly insert a probe, etc. into the terminal from the front of the connector.
4. Insert the special tool (MB992006) from behind the air bag module connector of the C-201 driver's side.
5. As shown in the figure, connect the circuit tester to the special tool (MB992006) and check to see that continuity exists between driver's air bag module terminals 1 and 2 and between terminals 3 and 4.

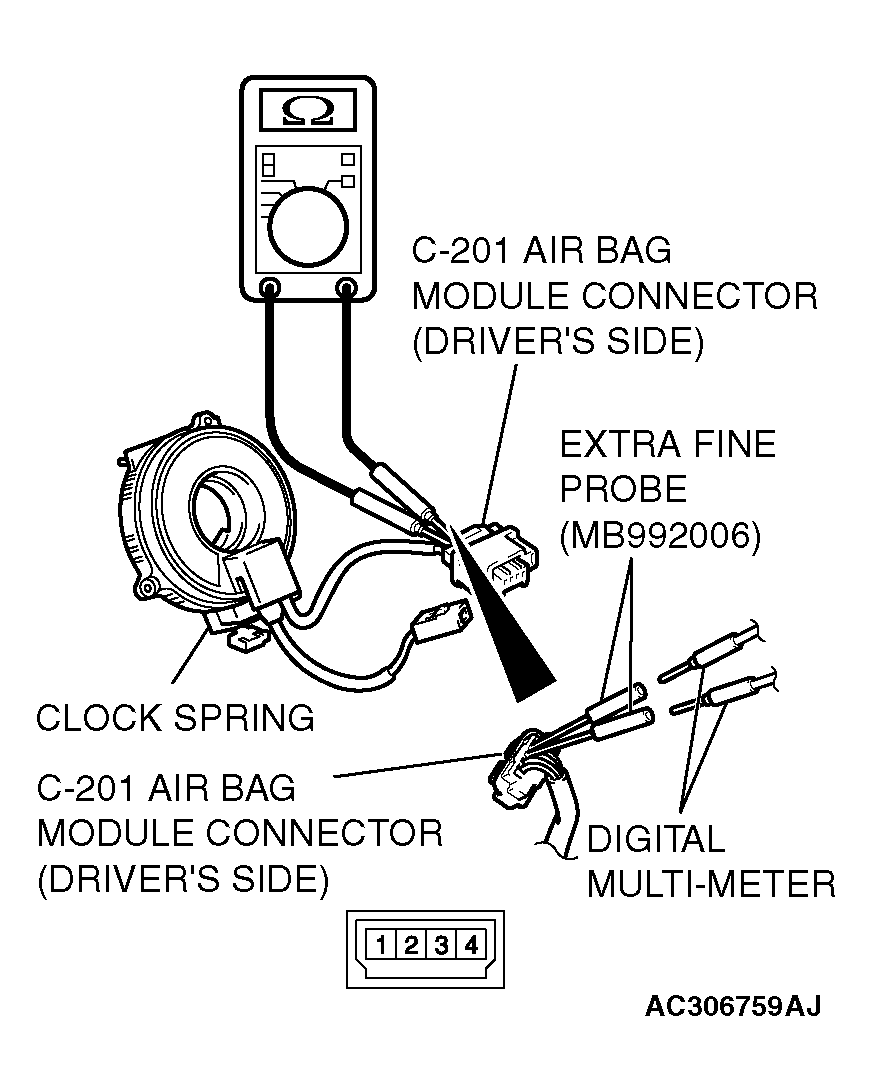

Fig 2: Inserting Special Tool (MB992006) From Behind Air Bag Module Connector Of C-201 Driver's Side

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
