Connector Engagement Inspection
Required Special Tool:
- MB991219: Inspection Harness (contained in MB991223 Test Harness)

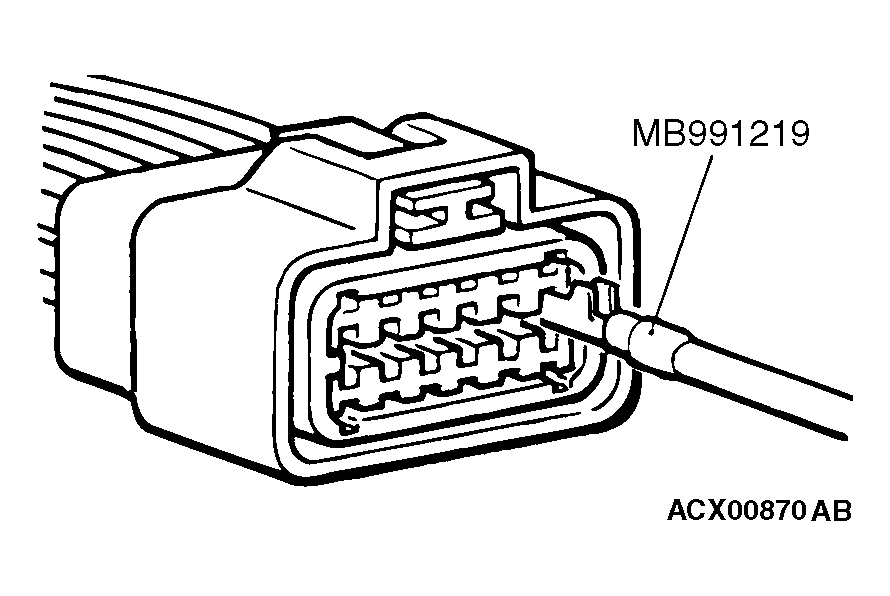

Use special tool MB991219 to inspect the engagement of the male pins and female pins. [Pin drawing force: 1 N (0.2 pound) or more]
