If Inspecting With The Connector Connected < Waterproof Connectors >

Be sure to use special tool. Never insert a test probe from the harness side, as this will reduce the waterproof performance and result in corrosion.

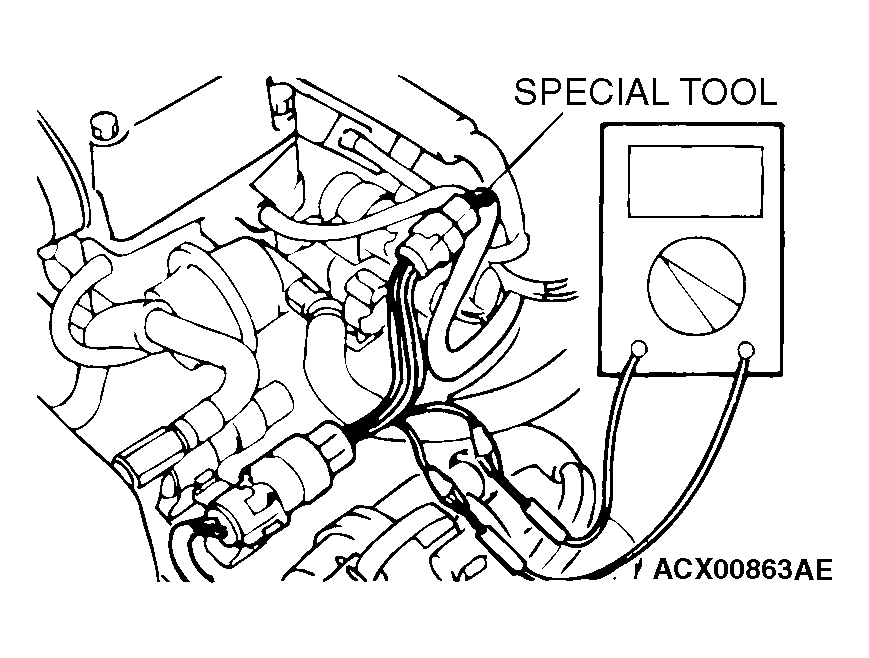

Fig 1: Identifying Special Tool
G04293837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
