If Inspecting With The Connector Disconnected < When Inspecting A Male Pin >

CAUTION: At this time, be careful not to short the connector pins with the test probes. Doing so may damage the circuits inside the ECU.

Touch the pin directly with the test probe.

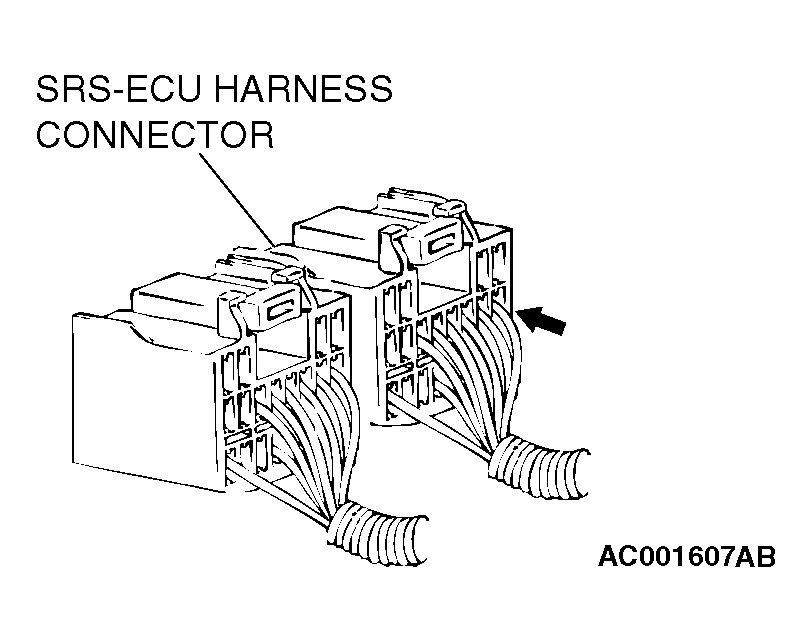

Fig 1: Identifying SRS-ECU Harness Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

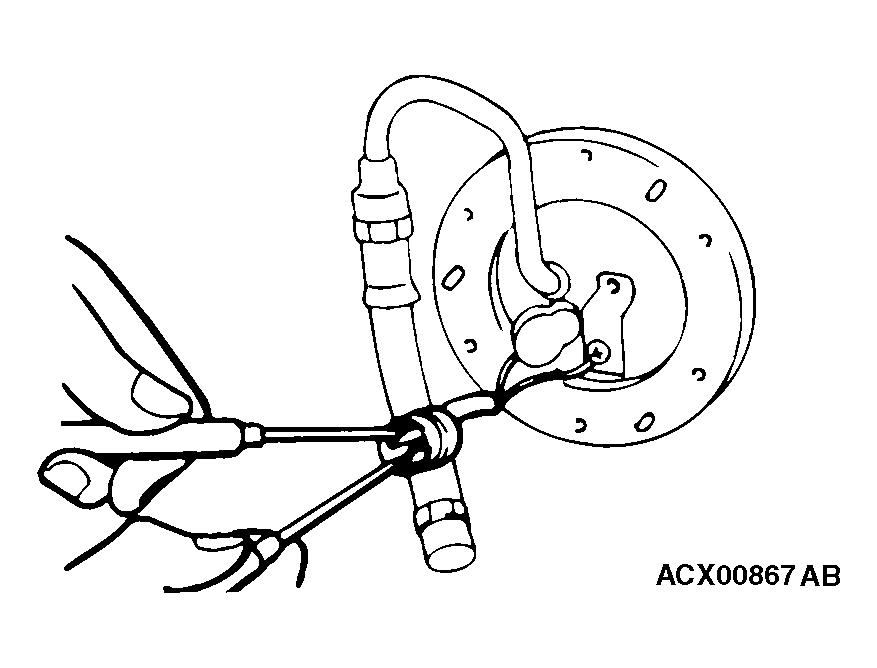

Fig 2: Touching Pin Directly With Test Probe

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
