Transfer Oil Level Check

  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.

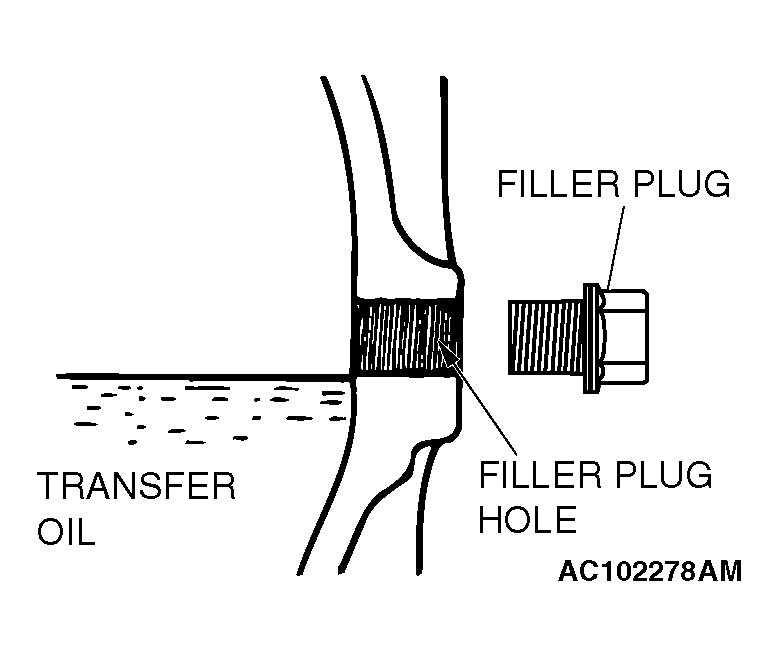

    Fig 1: Checking Oil Level Filler Plug Hole
    G04293882Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)
