SRS Data List Reference Table Note Changed- Service Manual Revision (TSB-09-52B-001)
Publication date: 2009-01-01Reference number: TSB-09-52B-001
SRS DATA LIST REFERENCE TABLE NOTE CHANGED- SERVICE MANUAL REVISION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TSB-09-52B-001, Date of Issue:
January 01, 2009
| MITSUBISHI: | 2006 Lancer; 2005-2006 Outlander; 2005-2009 Galant; 2006-2009 Eclipse; 2007-2009 Eclipse Spyder; 2007-2008 Endeavor |
| GROUP: | : 52B - SUPPLEMENTAL RESTRAINT |
PURPOSE
In several "Notes" that refer to the Data Reference Table, the wording "or non-ignition judgement" has been deleted. This Technical Service Bulletin supplies replacement pages for the applicable service manuals.
AFFECTED VEHICLE(S)
2006 Lancer
2005-06 Outlander
2005-09 Galant
2006-09 Eclipse
2007-09 Eclipse Spyder
2007-08 Endeavor
APPLICABLE MANUAL(S)
APPLICABLE MANUAL(S)
| Manual | Description | Attachment |
|---|---|---|

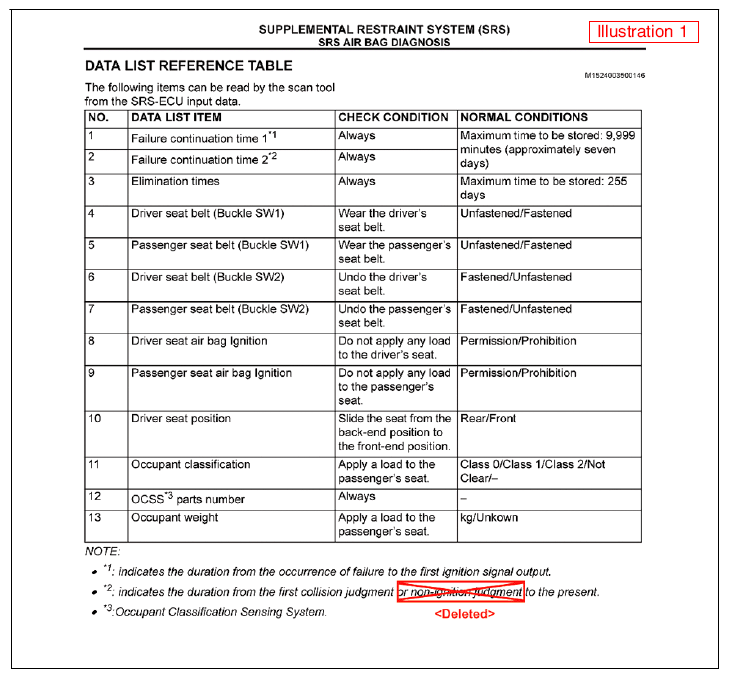

| 2006 LANCER Service Manuals | Data List Reference Table | See Fig 1 |

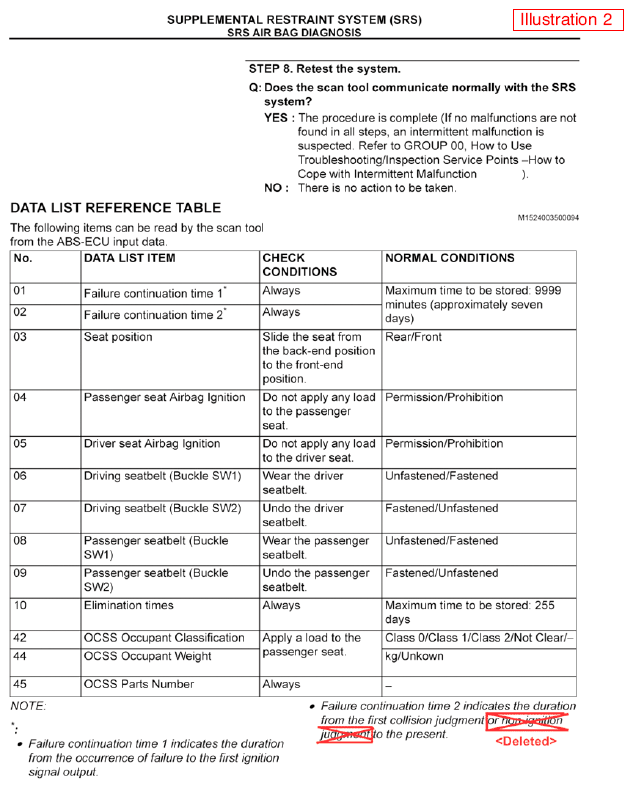

| 2005-2006 OUTLANDER Service Manuals | Data List Reference Table (MEDIC) | See Fig 2 |

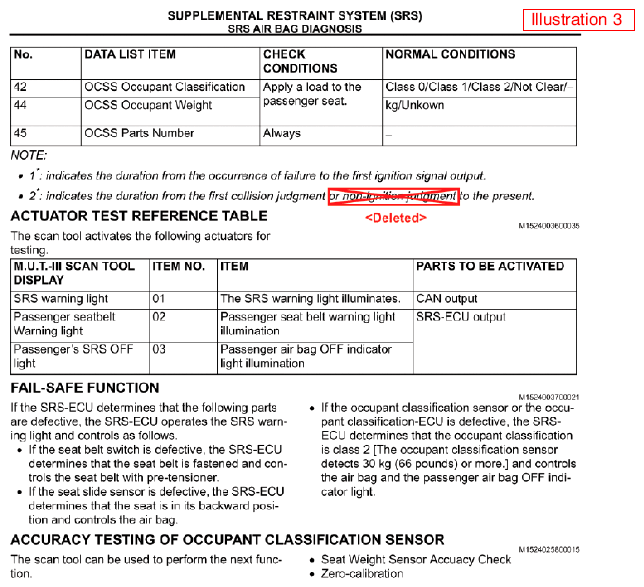

| 2005 GALANT Service Manual (MEDIC) | Data List Reference Table | See Fig 3 |

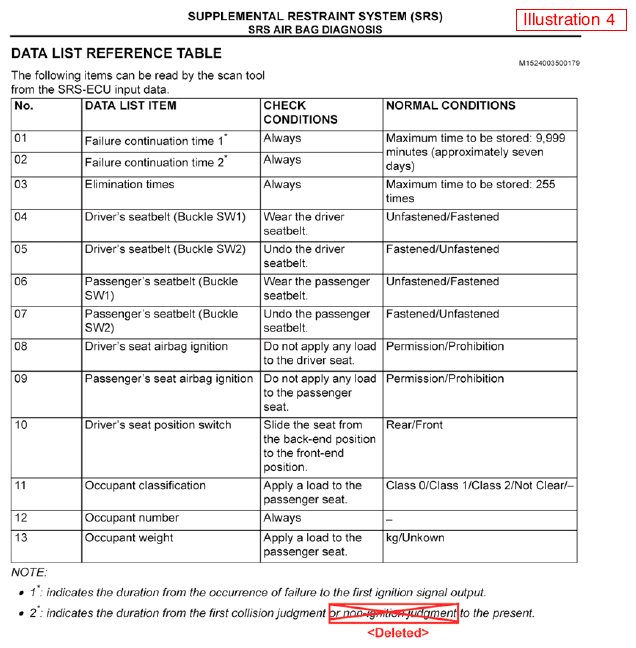

| 2005 GALANT Service Manual (PDF) | Data List Reference Table ↓ |
See Fig 4 ↓ |
| 2006 GALANT Service Manual | ||

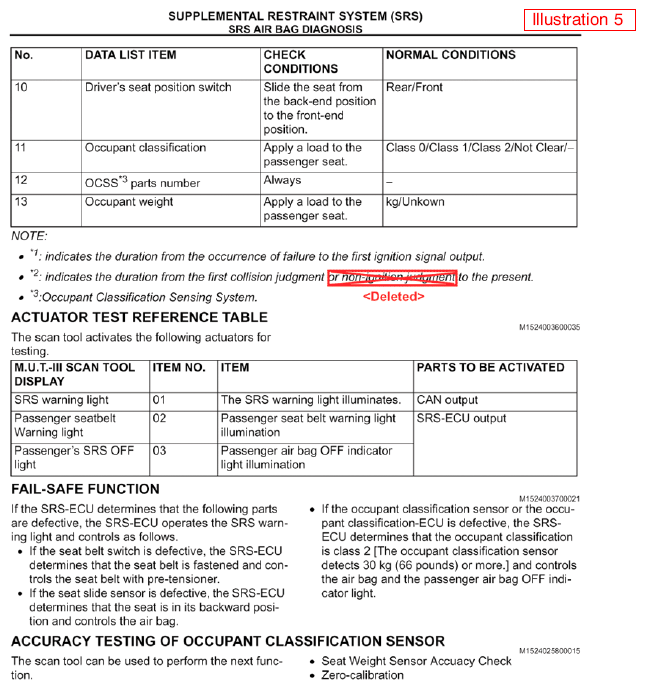

| 2007-09 GALANT Service Manual | Data List Reference Table | See Fig 5 |

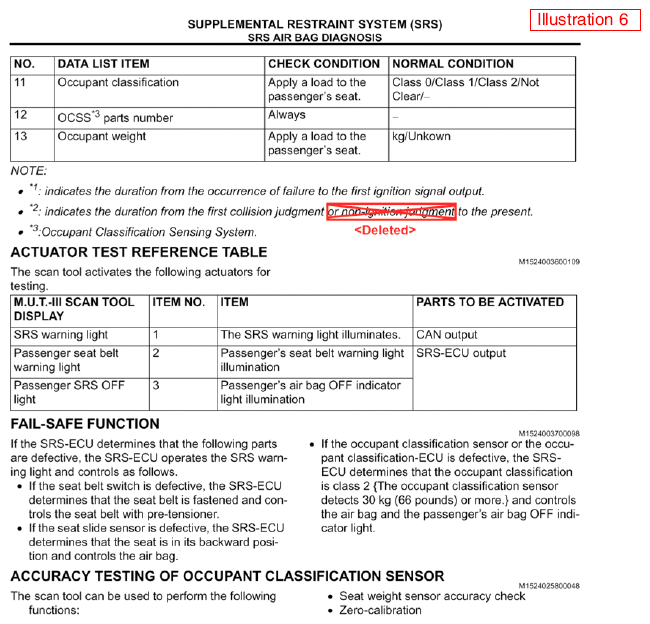

| 2006 ECLIPSE Service Manual | Data List Reference Table | See Fig 6 ↓ |
| 2007-09 ECLIPSE/ECLIPSE SPYDER Service Manuals | Data List Reference Table | |

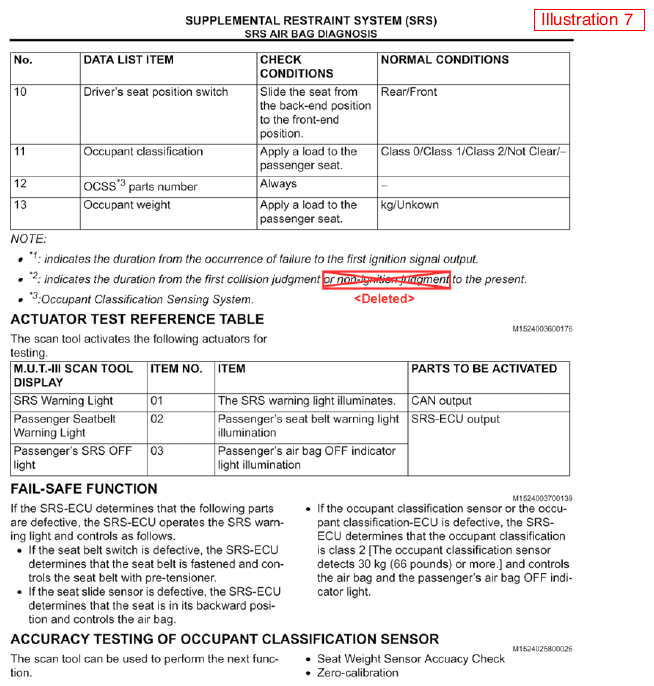

| 2007-08 ENDEAVOR Service Manuals | Data List Reference Table | See Fig 7 |
